Transit Auto Rear Disc Rotors Ceramic Pads Parking Brake Shoes And Hardware Kit For Lexus IS300 IS350 GS350 RC350 RC300 IS200t GS450h GS300 RC200t GS200t K8C-104909

Part #: K8C-104909

Position:

Transit Auto Rear Disc Rotors Ceramic Pads Parking Brake Shoes And Hardware Kit For Lexus IS300 IS350 GS350 RC350 RC300

Kit specifications, dimensions, and included hardware details for K8C-104909.

Product engineering specifications and technical dimensions
Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 310
Height (in mm) 67.4
Discard Thickness (in mm) 16.5
Nominal Thickness (in mm) 18
Bolt Circle Diameter 114.3
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No
Center Hole Diameter (in mm) 62
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth
Solid or Vented Type Rotor Vented
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 8500
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104909).

Equivalent and replacement competitor interchange part numbers for this product
Brand Part Number
TRANSBEC ATO1004
GEOTECH 2940762
FMSI 8500, 8500, 8500, 8809, 8841, 8809, 9084, 8988, 8988, 8841, 9084
BENDIX PRT6237
Transit Part D1391, D1391, 1047B
AGN PERFORMANCE+ SEE CR31446, SEE CR31446
RAYBESTOS 1047PG, H17485, H17485, H17485, 980984
PAD D# D1391
CENTRIC 111.10470, 120.44189
B2B Lookups 1391, S1047, 1391, B1047, 1047, NB1047
MAX ADVANCED ONZ1106
PAD PLATE# 1391
TRANSBEC OTHER TO1004
DORMAN HW17485, HW17485, HW17485
PMR UAP 940762, 940762, 940762
CARQUEST YH425685P, YH425685
AIMCO RAY 980984
NAPA OTHER PF8500X, PF8500X, PF8500X, SG8500X, PF8500X, SS8988X, AD8500, 2488821515, 3488821515, QE8500X, SS8500X, AD8988, SS8988X, SS8988X, SS8988X
CARQUEST OTHER YH425685HC, YH425685
AP EXHAUST xCMX-D1391, ASR-TO-6127
PARTS MASTER ROTOR 901474
NAPA 1 SG8500X
QBP Q1980984
BBP 17485K, 17485K, 17485K
AGN AUTOLOGIX SEE AG31446, SEE AG31446
C-TEK BY CENTRIC 121.44189
RAYBESTOS OTHER 980984FZN, 980984R
DURAGO BR901474
PROMAX 610041
NAPA 2 SG8988X
CARLSON 17485, 17485, 17485
AGN PROLOGIX SEE PR31446, SEE PR31446
NAPA QE8500X, AD8500, SS8988X, SS8988X, AD8500, QE8500X, PF8500X, AD8988, AD8500, SS8500X, AD8988, 7488821515, PF8500X, QE8500X, SS8500X, PF8500X, AD8988, SS8500X, SS8988X
EUROROTOR TO-6127
FMSI OTHER 8809, 9084, 8988, 8841
WAGNER BD180555
Transit Auto Official Logo

Transit Auto

Transit Auto Rear Disc Rotors Ceramic Pads Parking Brake Shoes And Hardware Kit For Lexus IS300 IS350 GS350 RC350 RC300 IS200t GS450h GS300 RC200t GS200t K8C-104909

Part #: K8C-104909

Position:

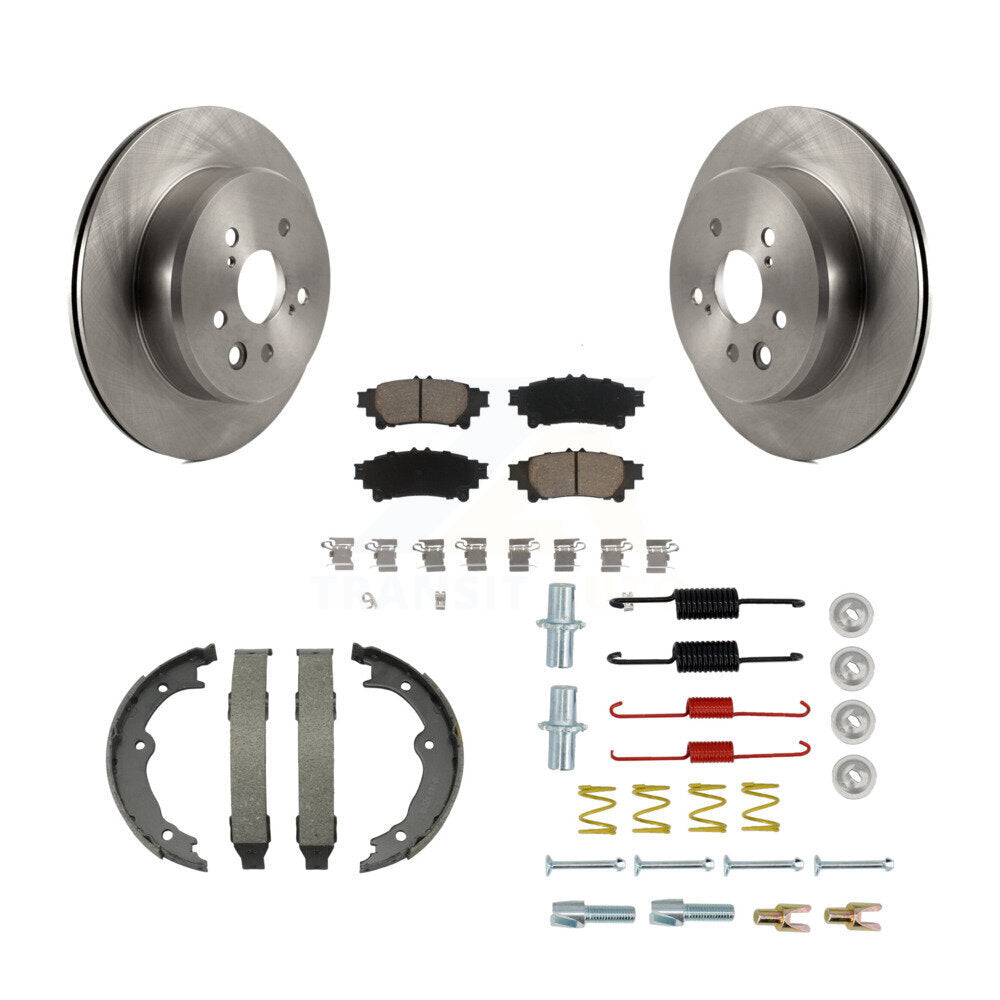

What's included

  • 2x Rear CMX Disc Brake Rotor (Both Side)
  • 1x Rear Ceramic CMX Brake Pad Set (Hardware Included)
  • 1x Rear Top Quality Parking Brake Shoe
  • 1x Rear CMX Parking Brake Hardware Kit

Overview

  • Exclusive CeramiX™ High-Density Ceramic compound provides optimal braking performance (Stable Friction, High Temperature Stability, Extended Lifetime Durability) while maintaining low dust and noise
  • Exclusive MetalliX™ Low Resin Semi-Metallic compound provides unmatched braking performance (abrasive friction, high temperature tolerance, quicker compound warming) while maintaining low dust and noise
  • CMX proprietary alloy formulation gives our hardware spring kits the ideal balance between tensile strength and hardness
  • Engineered with carbon-enhanced XCast™ (G3000) iron castings to achieve an optimal wear resistance, tensile strength and steel hardness providing unmatched braking performance
  • Rubberized Multi-Layer Stainless Steel Shim reduces noise, vibration, and harshness for complete quietness
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to improve durability
  • Load-Deflection (LD) tested for maximum tolerance to a voluminous amount of spring loading and unloading cycles
  • Part Reference Numbers : SEE AG31446 SEE CR31446 SEE PR31446 YH425685 YH425685HC YH425685P 120.44189 BR901474 TO-6127 2940762 ONZ1106 2488821515 3488821515 7488821515 901474 940762 610041 Q1980984 980984FZN 980984R 980984 TO1004 ATO1004 8809 8841 8988 9084 8500 SG8500X SG8988X AD8500 AD8988 PF8500X QE8500X SS8500X SS8988X D1391 1391 1047 B1047 NB1047 S1047 111.10470 1047PG 1047B 17485K 17485 HW17485 H17485
  • 100% Precision Spin and Mill-Balanced for smoother stopping and zero vibration at any speed
  • Kit Includes: 2x Rear CMX Disc Brake Rotor (Both Side) + 1x Rear Ceramic CMX Brake Pad Set (Hardware Included) + 1x Rear Top Quality Parking Brake Shoe + 1x Rear CMX Parking Brake Hardware Kit
$228.99

Fastest Delivery

Temporarily Out of Stock

No replenishment date available

Shipping, Returns and Warranty Policies

Free Shipping

Transit Auto offer free shipping on most orders, no minimum amount is required. At checkout, you’ll be able to see the estimated delivery date of your chosen shipping method. For more info, please visit our Shipping and Deliveries page.

Free Returns

Transit Auto offer free return on all orders. To learn more or open a return request, head over to our Returns page.

100% Fitment Guarantee

Transit Auto guarantees the fitment information provided on every vehicle replacement part sold on its website. Learn more on our Fitment Guarantee page.

Warranty

Transit Auto offer a free 1 Year warranty on Transit Inc. products. All other products are covered by the original manufacturer warranty. To learn more, please visit our Warranty page.

Available in Store

Enter your postal code to see nearby stores.

Shop from this location

Select Store

Kit specifications, dimensions, and included hardware details for K8C-104909.

Product engineering specifications and technical dimensions
Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 310
Height (in mm) 67.4
Discard Thickness (in mm) 16.5
Nominal Thickness (in mm) 18
Bolt Circle Diameter 114.3
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No
Center Hole Diameter (in mm) 62
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth
Solid or Vented Type Rotor Vented
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 8500
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104909).

Equivalent and replacement competitor interchange part numbers for this product
Brand Part Number
TRANSBEC ATO1004
GEOTECH 2940762
FMSI 8500, 8500, 8500, 8809, 8841, 8809, 9084, 8988, 8988, 8841, 9084
BENDIX PRT6237
Transit Part D1391, D1391, 1047B
AGN PERFORMANCE+ SEE CR31446, SEE CR31446
RAYBESTOS 1047PG, H17485, H17485, H17485, 980984
PAD D# D1391
CENTRIC 111.10470, 120.44189
B2B Lookups 1391, S1047, 1391, B1047, 1047, NB1047
MAX ADVANCED ONZ1106
PAD PLATE# 1391
TRANSBEC OTHER TO1004
DORMAN HW17485, HW17485, HW17485
PMR UAP 940762, 940762, 940762
CARQUEST YH425685P, YH425685
AIMCO RAY 980984
NAPA OTHER PF8500X, PF8500X, PF8500X, SG8500X, PF8500X, SS8988X, AD8500, 2488821515, 3488821515, QE8500X, SS8500X, AD8988, SS8988X, SS8988X, SS8988X
CARQUEST OTHER YH425685HC, YH425685
AP EXHAUST xCMX-D1391, ASR-TO-6127
PARTS MASTER ROTOR 901474
NAPA 1 SG8500X
QBP Q1980984
BBP 17485K, 17485K, 17485K
AGN AUTOLOGIX SEE AG31446, SEE AG31446
C-TEK BY CENTRIC 121.44189
RAYBESTOS OTHER 980984FZN, 980984R
DURAGO BR901474
PROMAX 610041
NAPA 2 SG8988X
CARLSON 17485, 17485, 17485
AGN PROLOGIX SEE PR31446, SEE PR31446
NAPA QE8500X, AD8500, SS8988X, SS8988X, AD8500, QE8500X, PF8500X, AD8988, AD8500, SS8500X, AD8988, 7488821515, PF8500X, QE8500X, SS8500X, PF8500X, AD8988, SS8500X, SS8988X
EUROROTOR TO-6127
FMSI OTHER 8809, 9084, 8988, 8841
WAGNER BD180555

About Transit Auto

Transit Auto offers the most comprehensive and highest-quality replacement kits on the market. Thanks to our cutting-edge AI, in-house product team, and proprietary fitment data, we are able to build and deliver the most accurate kits on the market.All our kits include the highest-quality parts on the market, sourced directly by Transit and its sub-brands. Backed by over 50 years of experience and with in-house quality assurance, every customer can purchase and drive with peace of mind.Transit Auto is the largest kit supplier, with over 150,000 kits, and the only supplier to provide the true picture of the kits and the complete buyer's guide. Whether you are a Do-It-Yourself enthusiast, a Mechanic, or a Garage, we have the right kit for you.

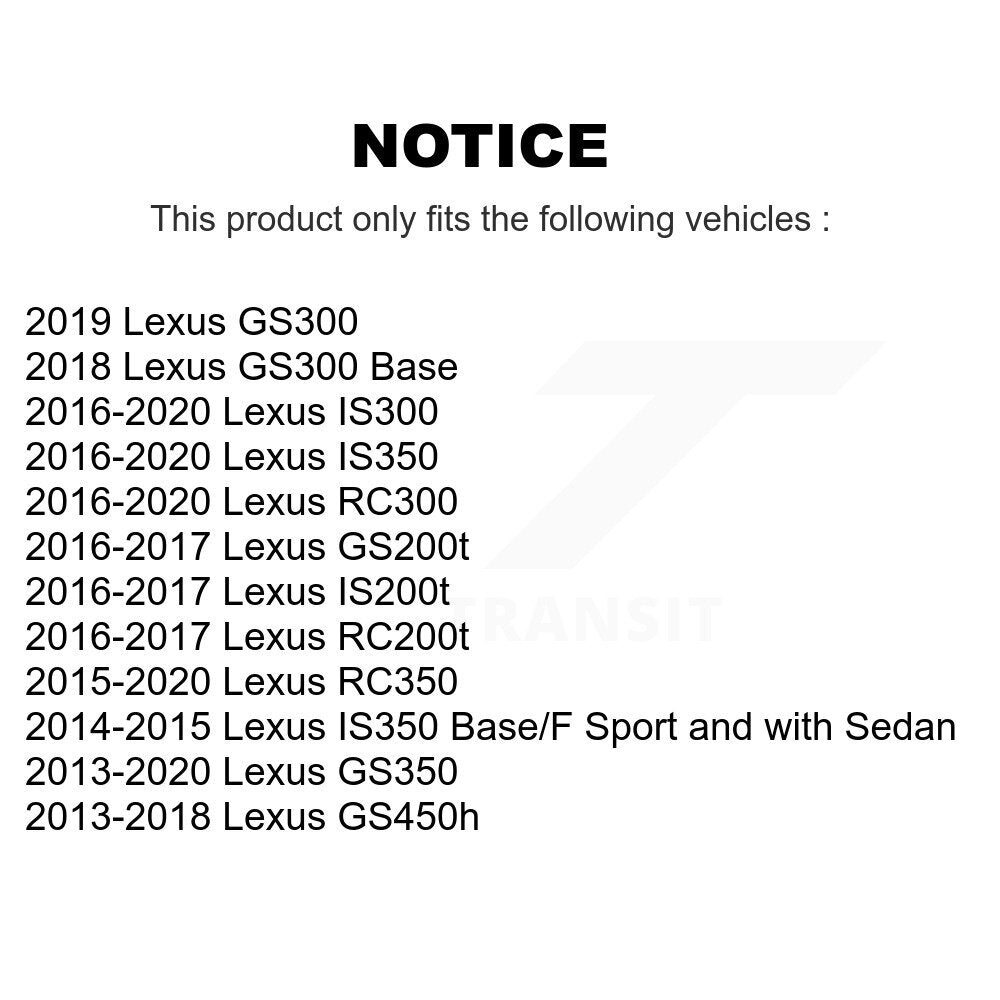

Compatibility

Compatibility table showing years, make, model, and fitment notes.
2019 Lexus GS300 Rear
2018 Lexus GS300 Base Rear
2016-2020 Lexus IS300 Rear
2016-2020 Lexus IS350 Rear
2016-2020 Lexus RC300 Rear
2016-2017 Lexus GS200t Rear
2016-2017 Lexus IS200t Rear
2016-2017 Lexus RC200t Rear
2015-2020 Lexus RC350 Rear
2014-2015 Lexus IS350 Base/F Sport and with Sedan Rear
2013-2020 Lexus GS350 Rear
2013-2018 Lexus GS450h Rear

Frequently Asked Questions

Will this Brake Kit fit my Lexus GS300? +

Yes. K8C-104909 Brake Kit guarantees OEM fitment for Lexus GS300 models matching: 2019 Lexus GS300 (Rear), and 2018 Lexus GS300 (Rear, Base). Refer to the compatibility chart above for complete details.

Will this Brake Kit fit my Lexus IS300? +

Yes. K8C-104909 Brake Kit guarantees OEM fitment for Lexus IS300 models matching: 2016-2020 Lexus IS300 (Rear). Refer to the compatibility chart above for complete details.

Will this Brake Kit fit my Lexus IS350? +

Yes. K8C-104909 Brake Kit guarantees OEM fitment for Lexus IS350 models matching: 2016-2020 Lexus IS350 (Rear), and 2014-2015 Lexus IS350 (Rear, Base/F Sport and with Sedan). Refer to the compatibility chart above for complete details.

What other vehicles does K8C-104909 fit? +

K8C-104909 Brake Kit is a multi-vehicle component compatible with over 10 vehicle applications across Lexus. Use our interactive compatibility table or vehicle selector above to confirm exact fitment for your vehicle.

How does shipping and same-day dispatch work for K8C-104909? +

Standard shipping is free across Canadian provinces with no minimum purchase required. Orders placed before 3:00 PM EST (Quebec DC) or 3:00 PM MST (Calgary DC) dispatch the same business day via UPS, FedEx, Purolator, GLS, or Canada Post. Estimated delivery dates are displayed at checkout. Learn more on our Shipping & Deliveries page.

What is the Transit Auto 100% Fitment Guarantee? +

Transit Auto guarantees fitment for every vehicle listed in our catalog. If a received part does not fit a vehicle listed in our compatibility table, we will replace it free of charge or issue a full refund. Review our complete Fitment Guarantee terms.

What is the return policy for K8C-104909? +

Every return is free. Transit Auto provides a 60-day return window from delivery with prepaid return shipping across Canada. Items must be in new, uninstalled condition with original packaging. Start a return on our Returns page.

What warranty covers K8C-104909? +

Every product on TransitAuto.ca includes a complimentary 1-year replacement warranty covering manufacturing defects. Outbound shipping for approved warranty replacements is covered by Transit Auto. Read full coverage details on our Warranty page.

Can I cancel or modify my order after placing it? +

Because our fulfillment centers automate orders immediately for same-day dispatch, orders cannot be modified or canceled once submitted. If you made an error, you can return the shipment free of charge upon delivery via our Returns portal.
