Transit Auto Rear Coated Drilled Slotted Disc Brake Rotors And Ceramic Pads Kit For Chevrolet Blazer Traverse Equinox EV Cadillac GMC Acadia XT5 Buick Enclave XT6 Limited KDC-101252

Part #: KDC-101252

Position:

Transit Auto Rear Coated Drilled Slotted Disc Brake Rotors And Ceramic Pads Kit For Chevrolet Blazer Traverse Equinox EV

Kit specifications, dimensions, and included hardware details for KDC-101252.

Product engineering specifications and technical dimensions
Specification Value
Bolt Hole Quantity 6
Outside Diameter (in mm) 315
Height (in mm) 48
Discard Thickness (in mm) 20
Nominal Thickness (in mm) 23
Bolt Circle Diameter 120
Hat Finished E-Coat
Construction Full Cast
Rust Resistant Coating Yes
Slotted (Rotors) Yes
Center Hole Diameter (in mm) 67.5
Grade Type Performance
ABS Sensor Ring Included No
Surface Type Slotted & Drilled
Solid or Vented Type Rotor Vented
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 9539
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (KDC-101252).

Equivalent and replacement competitor interchange part numbers for this product
Brand Part Number
WAGNER COATED BD180684E, BD180684E, BD180684E
RAYBESTOS 582060
CARQUEST YH549465, YH549465P
GEOTECH 2941182
DURAGO BR901700, BR901700, BR901700
TRANSBEC BGM1052, BGM1052, BGM1052, AGM1052, AGM1052
PARTS MASTER ROTOR 901700, 901700, 901700
AGN PERFORMANCE+ CR90825
PAD D# D2303
AIMCO RAY 582060
AGN AUTOLOGIX AR90825, AR90825
CARQUEST OTHER YH549465C, YH549465, YH549465HC
RAYBESTOS OTHER 582060FZN, 582060R
NAPA OTHER 348882060, 248882060
NAPA 748882060
C-TEK BY CENTRIC 121.62169, 121.62169, 121.62169
AGN PROLOGIX PR90825, PR90825
Transit Part 582060, 582060
PMR UAP 941182, 941182, 941182
WAGNER BD180684, BD180684, BD180684
TRANSBEC OTHER AGM1052
NAPA 2 AD9539
PROMAX 650009
AGN AUTOLOGIX COATED AC90825
CENTRIC 120.62169, 120.62169, 120.62169
EUROROTOR 55390, 55390, 55390
NAPA 1 SG9539M
AP EXHAUST DS1-55390
PAD PLATE# 2303
CANADIAN TIRE 2164533
FMSI 9539
Transit Auto Official Logo

Transit Auto

Transit Auto Rear Coated Drilled Slotted Disc Brake Rotors And Ceramic Pads Kit For Chevrolet Blazer Traverse Equinox EV Cadillac GMC Acadia XT5 Buick Enclave XT6 Limited KDC-101252

Part #: KDC-101252

Position:

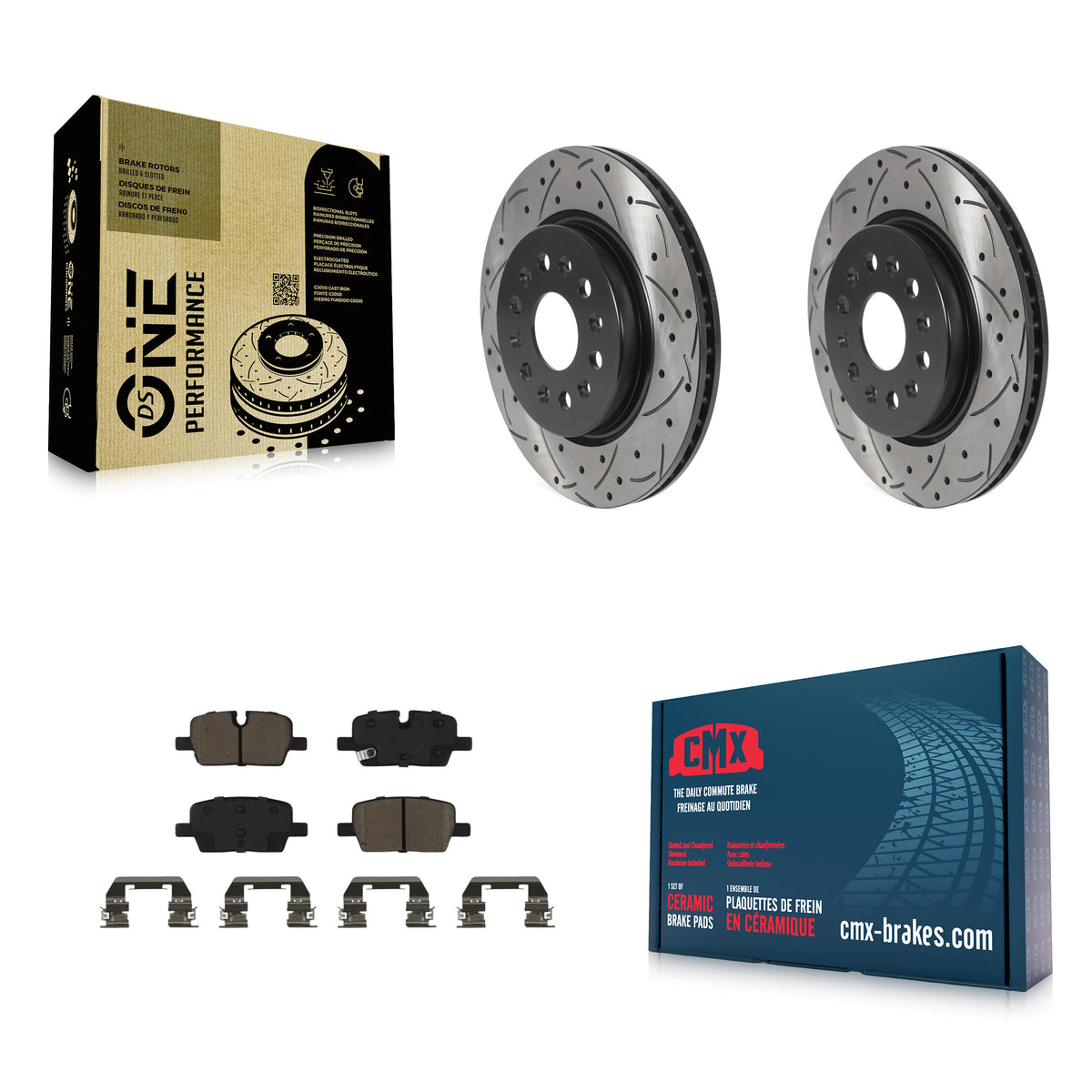

What's included

  • 2x Rear Coated Drilled Slotted DS-One Disc Brake Rotor (Both Side)
  • 1x Rear Ceramic CMX Brake Pad Set (Hardware Included)

Overview

  • Exclusive CeramiX™ High-Density Ceramic compound provides optimal braking performance (Stable Friction, High Temperature Stability, Extended Lifetime Durability) while maintaining low dust and noise
  • Engineered with Carbon-Enhanced PowerCast™ (G11H18/G3000) iron castings to achieve an unmatched power and braking performance (strength, grip, stability)
  • Rubberized Multi-Layer Stainless Steel Shim reduces noise, vibration, and harshness for complete quietness
  • Part Reference Numbers : AC90825 AR90825 CR90825 PR90825 2164533 YH549465 YH549465C YH549465HC YH549465P 120.62169 BR901700 55390 2941182 248882060 348882060 748882060 901700 941182 650009 582060FZN 582060R 582060 AGM1052 BGM1052 9539 SG9539M AD9539 D2303 2303
  • Exclusive DS1™ Bi-Directional Drilled and Slotted for universal left or right installation
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to increase durability
  • Precision Cross-Drilled and Slotted for maximum cooling and heat dissipation
  • Precise laser-cut channel cut provides superior thermal stability and prevent overheating
  • Kit Includes: 2x Rear Coated Drilled Slotted DS-One Disc Brake Rotor (Both Side) + 1x Rear Ceramic CMX Brake Pad Set (Hardware Included)
  • Kit Variations: K8A-107683 K8C-103716 K8F-104283 K8S-104178 K8T-104780 KDA-103000 KDF-101347 KDS-101187 KDT-101440 KGA-106053 KGC-102845 KGF-103296 KGS-102868 KGT-103544
$212.99

Fastest Delivery

Temporarily Out of Stock

No replenishment date available

Shipping, Returns and Warranty Policies

Free Shipping

Transit Auto offer free shipping on most orders, no minimum amount is required. At checkout, you’ll be able to see the estimated delivery date of your chosen shipping method. For more info, please visit our Shipping and Deliveries page.

Free Returns

Transit Auto offer free return on all orders. To learn more or open a return request, head over to our Returns page.

100% Fitment Guarantee

Transit Auto guarantees the fitment information provided on every vehicle replacement part sold on its website. Learn more on our Fitment Guarantee page.

Warranty

Transit Auto offer a free 1 Year warranty on Transit Inc. products. All other products are covered by the original manufacturer warranty. To learn more, please visit our Warranty page.

Available in Store

Enter your postal code to see nearby stores.

Shop from this location

Select Store

Kit specifications, dimensions, and included hardware details for KDC-101252.

Product engineering specifications and technical dimensions
Specification Value
Bolt Hole Quantity 6
Outside Diameter (in mm) 315
Height (in mm) 48
Discard Thickness (in mm) 20
Nominal Thickness (in mm) 23
Bolt Circle Diameter 120
Hat Finished E-Coat
Construction Full Cast
Rust Resistant Coating Yes
Slotted (Rotors) Yes
Center Hole Diameter (in mm) 67.5
Grade Type Performance
ABS Sensor Ring Included No
Surface Type Slotted & Drilled
Solid or Vented Type Rotor Vented
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 9539
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (KDC-101252).

Equivalent and replacement competitor interchange part numbers for this product
Brand Part Number
WAGNER COATED BD180684E, BD180684E, BD180684E
RAYBESTOS 582060
CARQUEST YH549465, YH549465P
GEOTECH 2941182
DURAGO BR901700, BR901700, BR901700
TRANSBEC BGM1052, BGM1052, BGM1052, AGM1052, AGM1052
PARTS MASTER ROTOR 901700, 901700, 901700
AGN PERFORMANCE+ CR90825
PAD D# D2303
AIMCO RAY 582060
AGN AUTOLOGIX AR90825, AR90825
CARQUEST OTHER YH549465C, YH549465, YH549465HC
RAYBESTOS OTHER 582060FZN, 582060R
NAPA OTHER 348882060, 248882060
NAPA 748882060
C-TEK BY CENTRIC 121.62169, 121.62169, 121.62169
AGN PROLOGIX PR90825, PR90825
Transit Part 582060, 582060
PMR UAP 941182, 941182, 941182
WAGNER BD180684, BD180684, BD180684
TRANSBEC OTHER AGM1052
NAPA 2 AD9539
PROMAX 650009
AGN AUTOLOGIX COATED AC90825
CENTRIC 120.62169, 120.62169, 120.62169
EUROROTOR 55390, 55390, 55390
NAPA 1 SG9539M
AP EXHAUST DS1-55390
PAD PLATE# 2303
CANADIAN TIRE 2164533
FMSI 9539

About Transit Auto

Transit Auto offers the most comprehensive and highest-quality replacement kits on the market. Thanks to our cutting-edge AI, in-house product team, and proprietary fitment data, we are able to build and deliver the most accurate kits on the market. All our kits include the highest-quality parts on the market, sourced directly by Transit and its sub-brands. Backed by over 50 years of experience and with in-house quality assurance, every customer can purchase and drive with peace of mind. Transit Auto is the largest kit supplier, with over 100,000 kits, and the only supplier to provide the true picture of the kits and the complete buyer's guide. Whether you are a Do-It-Yourself enthusiast, a Mechanic, or a Garage, we have the right kit for you.

Compatibility

Compatibility table showing years, make, model, and fitment notes.
2024-2025 Chevrolet Equinox EV Rear
2024 Chevrolet Traverse Limited Rear
2021-2025 Chevrolet Blazer Rear
2021-2023 Cadillac XT5 Rear
2021-2023 Cadillac XT6 Rear
2021-2023 Chevrolet Traverse Rear
2021-2023 GMC Acadia Rear
2020-2023 Buick Enclave Rear
2020 Chevrolet Traverse From Chassis / VIN # LJ29652 Rear

Frequently Asked Questions

Will this Brake Kit fit my Chevrolet Equinox EV? +

Yes. KDC-101252 Brake Kit guarantees OEM fitment for Chevrolet Equinox EV models matching: 2024-2025 Chevrolet Equinox EV (Rear). Refer to the compatibility chart above for complete details.

Will this Brake Kit fit my Chevrolet Traverse Limited? +

Yes. KDC-101252 Brake Kit guarantees OEM fitment for Chevrolet Traverse Limited models matching: 2024 Chevrolet Traverse Limited (Rear). Refer to the compatibility chart above for complete details.

Will this Brake Kit fit my Chevrolet Blazer? +

Yes. KDC-101252 Brake Kit guarantees OEM fitment for Chevrolet Blazer models matching: 2021-2025 Chevrolet Blazer (Rear). Refer to the compatibility chart above for complete details.

What other vehicles does KDC-101252 fit? +

KDC-101252 Brake Kit is a multi-vehicle component compatible with over 8 vehicle applications across Chevrolet, Cadillac, GMC, Buick. Use our interactive compatibility table or vehicle selector above to confirm exact fitment for your vehicle.

How does shipping and same-day dispatch work for KDC-101252? +

Standard shipping is free across Canadian provinces with no minimum purchase required. Orders placed before 3:00 PM EST (Quebec DC) or 3:00 PM MST (Calgary DC) dispatch the same business day via UPS, FedEx, Purolator, GLS, or Canada Post. Estimated delivery dates are displayed at checkout. Learn more on our Shipping & Deliveries page.

What is the Transit Auto 100% Fitment Guarantee? +

Transit Auto guarantees fitment for every vehicle listed in our catalog. If a received part does not fit a vehicle listed in our compatibility table, we will replace it free of charge or issue a full refund. Review our complete Fitment Guarantee terms.

What is the return policy for KDC-101252? +

Every return is free. Transit Auto provides a 60-day return window from delivery with prepaid return shipping across Canada. Items must be in new, uninstalled condition with original packaging. Start a return on our Returns page.

What warranty covers KDC-101252? +

Every product on TransitAuto.ca includes a complimentary 1-year replacement warranty covering manufacturing defects. Outbound shipping for approved warranty replacements is covered by Transit Auto. Read full coverage details on our Warranty page.

Can I cancel or modify my order after placing it? +

Because our fulfillment centers automate orders immediately for same-day dispatch, orders cannot be modified or canceled once submitted. If you made an error, you can return the shipment free of charge upon delivery via our Returns portal.
