Transit Auto Front Disc Brake Rotors And Ceramic Pads Kit For 2019 Dodge Challenger SXT with AWD With 320mm Diameter Rotor K8T-100220

Part #: K8T-100220

Position:

Transit Auto Front Disc Brake Rotors And Ceramic Pads Kit For 2019 Dodge Challenger SXT with AWD With 320mm Diameter Rotor

Kit specifications, dimensions, and included hardware details for K8T-100220.

Product engineering specifications and technical dimensions
Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 320
Height (in mm) 54.6
Discard Thickness (in mm) 26.5
Nominal Thickness (in mm) 28
Bolt Circle Diameter 115
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No
Center Hole Diameter (in mm) 72.60
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth
Solid or Vented Type Rotor Vented
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 7965
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8T-100220).

Equivalent and replacement competitor interchange part numbers for this product
Brand Part Number
TRANSBEC A53022
GEOTECH 2053022
FMSI 7965
SPH PADS SCD1058
BENDIX PRT5650
AGN PERFORMANCE+ CR53022
RAYBESTOS 780255
PAD D# D1058
CENTRIC 120.63059
MAX ADVANCED ONZ0537
PAD PLATE# 1058
PMR UAP 126263
OEM 4779196AB
CARQUEST YH145650P, YH145650
AIMCO 53022
AGN AUTOLOGIX COATED AC53022
NAPA OTHER SS7965X, 348880255, 248880255, UP7965X, PF7965X, FT7965, AD7965, QE7965X, SG7965X
CARQUEST OTHER YH145650C, YH145650HC, YH145650
AP EXHAUST ASR-53212, TEC-D1058
PARTS MASTER ROTOR 126263
NAPA 1 SG7965X
QBP Q53022
AGN AUTOLOGIX AG53022, AG53022
C-TEK BY CENTRIC 121.63059
RAYBESTOS OTHER 780255FZN, 780255R
DURAGO BR53022
BRAKE PADS OTHER 1058C, 1058A, D1058A, D1058C
NAPA 2 PF7965X
AGN PROLOGIX PR53022
NAPA AD7965, UP7965X, FT7965, QE7965X, 748880255, PF7965X, SS7965X
EUROROTOR 53212
FMSI OTHER 8236, 8839, 8838
WAGNER BD126263
Transit Auto Official Logo

Transit Auto

Transit Auto Front Disc Brake Rotors And Ceramic Pads Kit For 2019 Dodge Challenger SXT with AWD With 320mm Diameter Rotor K8T-100220

Part #: K8T-100220

Position:

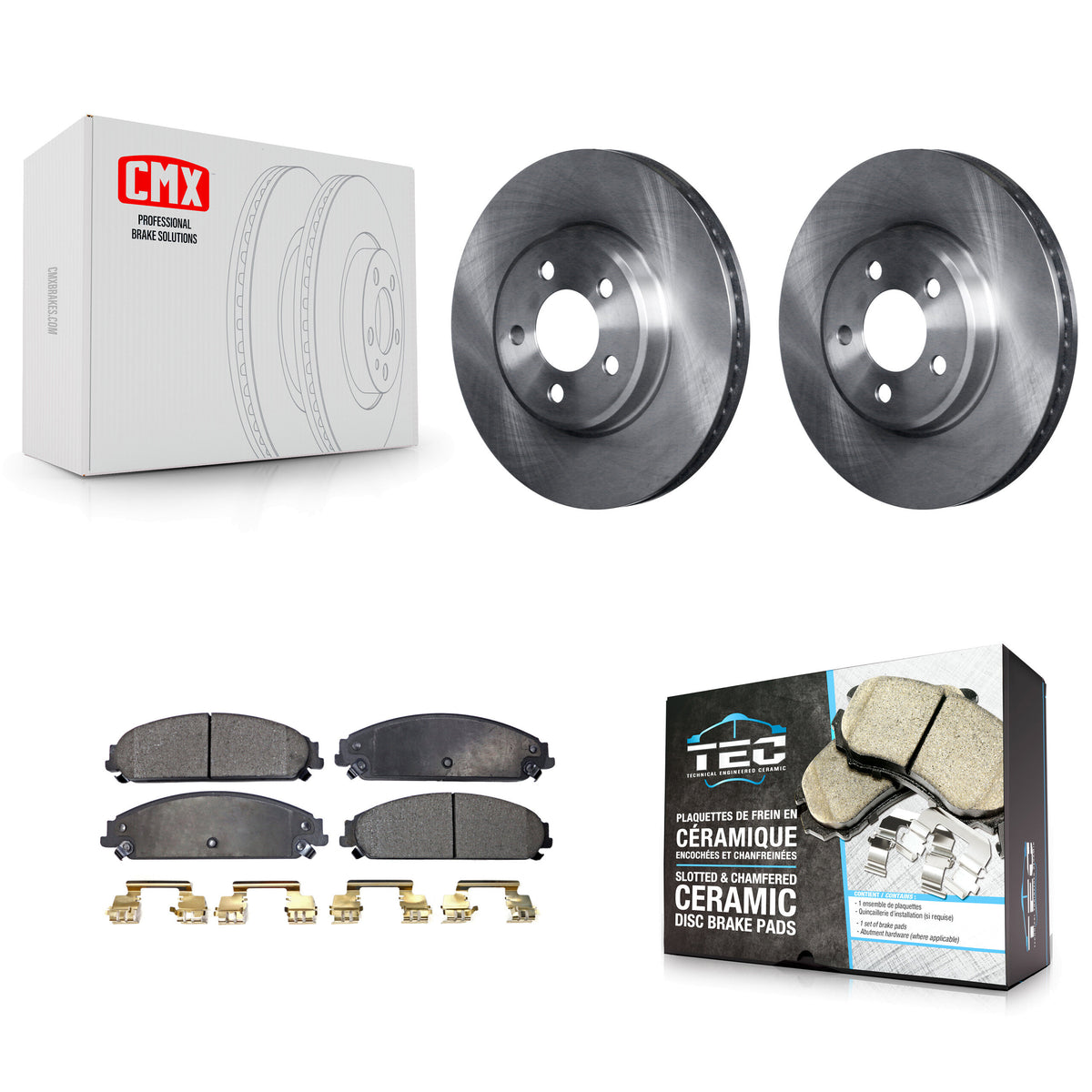

What's included

  • 2x Front CMX Disc Brake Rotor (Both Side)
  • 1x Front Ceramic TEC Brake Pad Set (Hardware Included)

Overview

  • Exclusive SilentGrip™ Low Resin Ceramic formula provides superior braking performance (Smooth Friction, Extreme Temperature Stability, Quicker Compound Cooling) while maintaining low dust and noise
  • Engineered with carbon-enhanced XCast™ (G3000) iron castings to achieve an optimal wear resistance, tensile strength and steel hardness providing unmatched braking performance
  • Fiber-Reinforced Multi-Layer Shim with rubber core eliminates noise, vibration, and harshness for complete quietness
  • Part Reference Numbers : AC53022 AG53022 CR53022 PR53022 53022 YH145650 YH145650C YH145650HC YH145650P 120.63059 BR53022 53212 2053022 ONZ0537 248880255 348880255 748880255 126263 Q53022 780255FZN 780255R 780255 A53022 1058A 1058C D1058A D1058C 8236 8838 8839 7965 SG7965X PF7965X AD7965 FT7965 QE7965X SS7965X UP7965X D1058 1058 SCD1058
  • 100% Precision Spin and Mill-Balanced for smoother stopping and zero vibration at any speed
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to improve durability
  • Cross-Hatched smooth surface to improve the pad's ability to grip the rotor surface, especially during initial brake applications or in wet conditions
  • Precise laser-cut channel cut provides superior thermal stability and prevent overheating
  • Kit Includes: 2x Front CMX Disc Brake Rotor (Both Side) + 1x Front Ceramic TEC Brake Pad Set (Hardware Included)
  • Kit Variations: K8A-104205 K8A-104212 K8C-100072 K8F-100216 K8S-100222 KDA-100258 KDA-100263 KDC-100194 KDF-100044 KDS-100035 KDT-100044 KGA-100088 KGA-100101 KGC-100248 KGF-100152 KGS-100151 KGT-100160
$178.99

Fastest Delivery

Temporarily Out of Stock

No replenishment date available

Shipping, Returns and Warranty Policies

Free Shipping

Transit Auto offer free shipping on most orders, no minimum amount is required. At checkout, you’ll be able to see the estimated delivery date of your chosen shipping method. For more info, please visit our Shipping and Deliveries page.

Free Returns

Transit Auto offer free return on all orders. To learn more or open a return request, head over to our Returns page.

100% Fitment Guarantee

Transit Auto guarantees the fitment information provided on every vehicle replacement part sold on its website. Learn more on our Fitment Guarantee page.

Warranty

Transit Auto offer a free 1 Year warranty on Transit Inc. products. All other products are covered by the original manufacturer warranty. To learn more, please visit our Warranty page.

Available in Store

Enter your postal code to see nearby stores.

Shop from this location

Select Store

Kit specifications, dimensions, and included hardware details for K8T-100220.

Product engineering specifications and technical dimensions
Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 320
Height (in mm) 54.6
Discard Thickness (in mm) 26.5
Nominal Thickness (in mm) 28
Bolt Circle Diameter 115
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No
Center Hole Diameter (in mm) 72.60
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth
Solid or Vented Type Rotor Vented
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 7965
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8T-100220).

Equivalent and replacement competitor interchange part numbers for this product
Brand Part Number
TRANSBEC A53022
GEOTECH 2053022
FMSI 7965
SPH PADS SCD1058
BENDIX PRT5650
AGN PERFORMANCE+ CR53022
RAYBESTOS 780255
PAD D# D1058
CENTRIC 120.63059
MAX ADVANCED ONZ0537
PAD PLATE# 1058
PMR UAP 126263
OEM 4779196AB
CARQUEST YH145650P, YH145650
AIMCO 53022
AGN AUTOLOGIX COATED AC53022
NAPA OTHER SS7965X, 348880255, 248880255, UP7965X, PF7965X, FT7965, AD7965, QE7965X, SG7965X
CARQUEST OTHER YH145650C, YH145650HC, YH145650
AP EXHAUST ASR-53212, TEC-D1058
PARTS MASTER ROTOR 126263
NAPA 1 SG7965X
QBP Q53022
AGN AUTOLOGIX AG53022, AG53022
C-TEK BY CENTRIC 121.63059
RAYBESTOS OTHER 780255FZN, 780255R
DURAGO BR53022
BRAKE PADS OTHER 1058C, 1058A, D1058A, D1058C
NAPA 2 PF7965X
AGN PROLOGIX PR53022
NAPA AD7965, UP7965X, FT7965, QE7965X, 748880255, PF7965X, SS7965X
EUROROTOR 53212
FMSI OTHER 8236, 8839, 8838
WAGNER BD126263

About Transit Auto

Transit Auto offers the most comprehensive and highest-quality replacement kits on the market. Thanks to our cutting-edge AI, in-house product team, and proprietary fitment data, we are able to build and deliver the most accurate kits on the market. All our kits include the highest-quality parts on the market, sourced directly by Transit and its sub-brands. Backed by over 50 years of experience and with in-house quality assurance, every customer can purchase and drive with peace of mind. Transit Auto is the largest kit supplier, with over 100,000 kits, and the only supplier to provide the true picture of the kits and the complete buyer's guide. Whether you are a Do-It-Yourself enthusiast, a Mechanic, or a Garage, we have the right kit for you.

Compatibility

Compatibility table showing years, make, model, and fitment notes.
2019 Dodge Challenger SXT and with AWD With 320mm Diameter Front Rotor Front
