CMX Front Rear Disc Brake Rotors Ceramic Pads And Drum Kit (9Pc) For 2015-2021 Ram ProMaster City K8C-104893
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors Ceramic Pads And Drum Kit (9Pc) For 2015-2021 Ram ProMaster City K8C-104893

Part #: K8C-104893

Position:

CMX Front Rear Disc Brake Rotors Ceramic Pads And Drum Kit (9Pc) For 2015-2021 Ram ProMaster City K8C-104893

Kit specifications, dimensions, and included hardware details for K8C-104893.

Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 305
Height (in mm) 45.8
Discard Thickness (in mm) 25.5
Nominal Thickness (in mm) 28
Bolt Circle Diameter 98
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No
Center Hole Diameter (in mm) 59
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth
Solid or Vented Type Rotor Vented
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 9142
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included False
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104893).

Brand Part Number
TRANSBEC ACH5011, ACH8002
GEOTECH 2950081, 2941020
FMSI 9142, 9142, 8945, 8945, 8945
Transit Part 1080B, D1721, D1721
AGN PERFORMANCE+ CR81085, CD81595
RAYBESTOS H7382, 97869, H7382, 1080PG, WC370260, 781950, H7382
PAD D# D1721
CENTRIC 120.63090, 122.63049, 111.10800
B2B Lookups 1721, 1721, 1080, NB1080
MAX ADVANCED ONZ1137
PAD PLATE# 1721
TRANSBEC OTHER CH8002, BCH8002, CH5011
DORMAN W610238, HW7382
PMR UAP 941020, 950081, 950081, 941020, 941020
OEM 68283193AA
CARQUEST YH528667, YH528667, YH528665P, YH528665
AIMCO RAY 97869, RAY 781950
NAPA OTHER SS9142X, SS9142X, SS9142X, PF8945X, SS8945X, 3488821802, 2488821802, SS8945X, SS8945X
CARQUEST OTHER YH528665
AP EXHAUST ASR-83164, ASR-53164, xCMX-D1721
PARTS MASTER ROTOR 920188, 901612
NAPA 1 PF8945X
QBP Q197869, Q1781950
BBP 7382K
AGN AUTOLOGIX AR81085, AR81085, AG81595, AD81595
C-TEK BY CENTRIC 123.63049, 121.63090
RAYBESTOS OTHER 781950R, 781950FZN, 97869R
DURAGO BR901612, BD920188
PROMAX 630002, 690001
NAPA 2 SS8945X
CARLSON H7382, H7382, H7382
AGN PROLOGIX PD81595, PR81085
NAPA 44061001, SS9142X, 7488821802, SS8945X, 44061001, SS8945X, 44061001, SS9142X, SS8945X, SS9142X
EUROROTOR 83164, 53164
FMSI OTHER 8945
WAGNER BD180754
CMX Front Rear Disc Brake Rotors Ceramic Pads And Drum Kit (9Pc) For 2015-2021 Ram ProMaster City K8C-104893
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors Ceramic Pads And Drum Kit (9Pc) For 2015-2021 Ram ProMaster City K8C-104893

Part #: K8C-104893

Position:

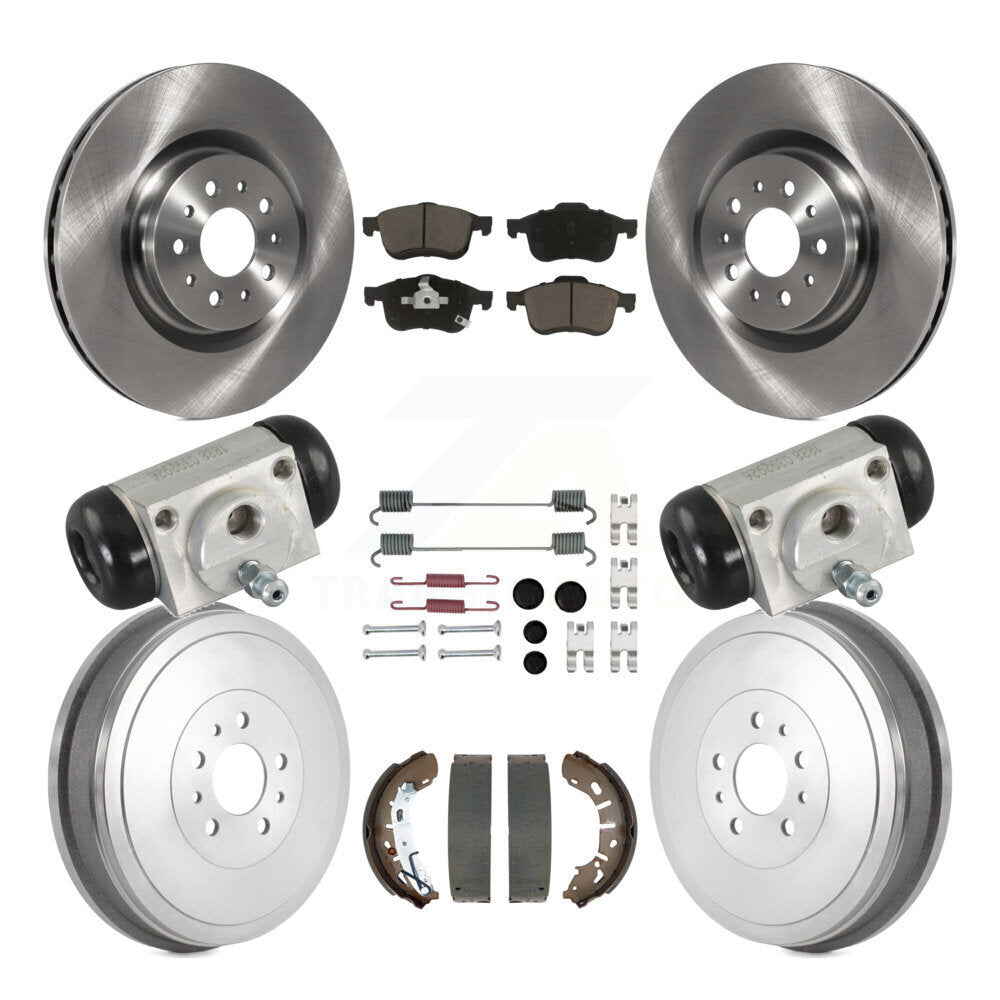

What's included

  • 2x Front CMX Disc Brake Rotor (Both Side)
  • 2x Rear CMX Brake Drum (Both Side)
  • 1x Front Ceramic CMX Brake Pad Set
  • 1x Rear CMX Drum Brake Hardware Kit
  • 1x Rear Top Quality Drum Brake Shoe Set
  • 2x Rear Kingstar Drum Brake Wheel Cylinder (Both Side)

Overview

  • Exclusive CeramiX™ High-Density Ceramic compound provides optimal braking performance (Stable Friction, High Temperature Stability, Extended Lifetime Durability) while maintaining low dust and noise
  • CMX proprietary alloy formulation gives our hardware spring kits the ideal balance between tensile strength and hardness
  • Exclusive MetalliX™ Low Resin Semi-Metallic compound provides unmatched braking performance (abrasive friction, high temperature tolerance, quicker compound warming) while maintaining low dust and noise
  • Engineered with Heat-Flowed cast iron to give our wheel cylinders the ideal balance between tensile strength and hardness
  • Engineered with carbon-enhanced XCast™ (G3000) iron castings to achieve an optimal wear resistance, tensile strength and steel hardness providing unmatched braking performance
  • Rubberized Multi-Layer Stainless Steel Shim reduces noise, vibration, and harshness for complete quietness
  • Load-Deflection (LD) tested for maximum tolerance to a voluminous amount of spring loading and unloading cycles
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to improve durability
  • Part Reference Numbers : AR81085 CR81085 PR81085 YH528665 YH528665P 120.63090 BR901612 53164 2941020 ONZ1137 2488821802 3488821802 7488821802 901612 941020 630002 Q1781950 781950FZN 781950R 781950 CH5011 ACH5011 AD81595 CD81595 PD81595 YH528667 122.63049 BD920188 83164 2950081 44061001 920188 950081 690001 Q197869 97869R 97869 CH8002 ACH8002 8945 PF8945X SS8945X D1721 1721 7382K H7382 HW7382 1080 NB1080 111.10800 1080PG 1080B W610238 68283193AA WC370260
  • Kit Includes: 2x Front Disc Brake Rotor (Both Side) + 2x Rear Brake Drum (Both Side) + 1x Front Ceramic Brake Pad Set + 1x Rear Drum Brake Hardware Kit + 1x Rear Drum Brake Shoe Set + 2x Rear Drum Brake Wheel Cylinder (Both Side)
