CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Mitsubishi Lancer K8C-104837
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Mitsubishi Lancer K8C-104837

Part #: K8C-104837

Position:

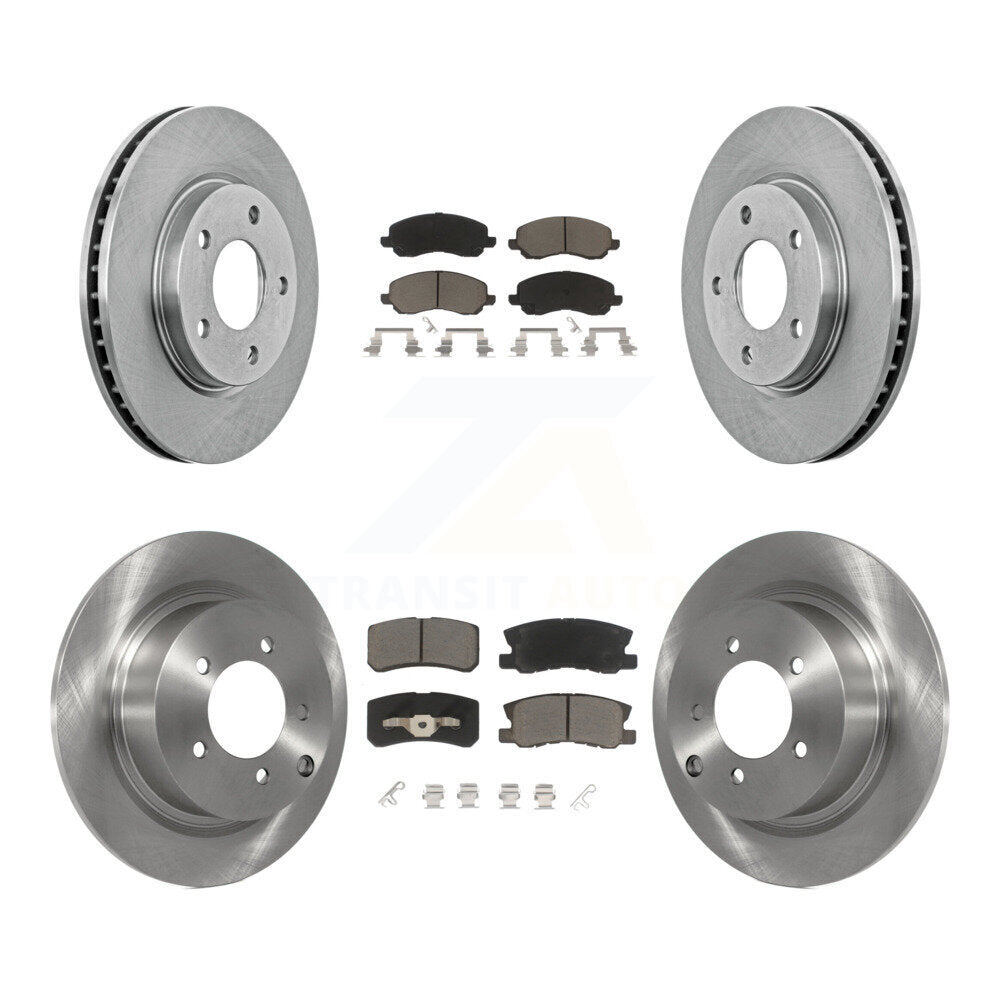

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Mitsubishi Lancer K8C-104837 - Product & Packaging View

Kit specifications, dimensions, and included hardware details for K8C-104837.

Specification Value
Bolt Hole Quantity 5 (Front) & 5 (Rear)
Outside Diameter (in mm) 276 (Front) & 302 (Rear)
Height (in mm) 45.5 (Front) & 60.1 (Rear)
Discard Thickness (in mm) 24.4 (Front) & 8.4 (Rear)
Nominal Thickness (in mm) 26 (Front) & 10 (Rear)
Bolt Circle Diameter 114.3 (Front) & 114.3 (Rear)
Hat Finished Regular (Front) & Regular (Rear)
Construction Full Cast (Front) & Full Cast (Rear)
Rust Resistant Coating No (Front) & No (Rear)
Slotted (Rotors) No (Front) & No (Rear)
Center Hole Diameter (in mm) 69.00 (Front) & 80.00 (Rear)
Grade Type Regular (Front) & Regular (Rear)
ABS Sensor Ring Included No (Front) & No (Rear)
Surface Type Smooth (Front) & Smooth (Rear)
Solid or Vented Type Rotor Vented (Front) & Solid (Rear)
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 7741 (Front) & 7743 (Rear)
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104837).

Brand Part Number
TRANSBEC A53037, A53043
GEOTECH 2053037, 2053043
FMSI 7741, 7741, 7741, 8338, 9290, 8338, 7743, 7743, 7743, 8402, 9290, 8402
BENDIX PRT5705, PRT5896
Transit Part D866, D866, D868, D868
AGN PERFORMANCE+ CR53037, CR53043
RAYBESTOS 780541, 780458
PAD D# D866, D868
CENTRIC 120.63068, 120.63069
B2B Lookups 866, 866, 868, 868
MAX ADVANCED SEE ONZ0032, SEE ONZ0032, ONZ0552
PAD PLATE# 866, 868
PMR UAP 900610, 900750
CARQUEST YH245331P, YH245331, YH145705P, YH145705
AIMCO 53037, 53043
AGN AUTOLOGIX COATED AC53037, AC53043
NAPA OTHER PF7741X, PF7741X, PF7741X, 348880458, 248880458, PF7741M, PF7741M, SS9290X, PF7741M, SS9290X, QE7741X, AD7741, SS9290X, PF7743X, SS7743X, UP7743X, PF7743X, SG7743X, PF7743X, AD7743, SS7741X, SG7741X, PF7741M, QE7743X, PF7741X, SS9290X, AD9290, 348880541, 248880541, 348881849, 248881849, 748881849
CARQUEST OTHER YH245331C, YH145705C, YH145705, YH245331
AP EXHAUST ASR-53234, xCMX-D866, xCMX-D868, ASR-53242
PARTS MASTER ROTOR 900750, 900610
NAPA 1 SG7743X, SG7741X
QBP Q53037, Q53043
AGN AUTOLOGIX AG53043, AG53037, AG53037, AG53043
C-TEK BY CENTRIC 121.63068, 121.63069
RAYBESTOS OTHER 780541FZN, 780541R, 780458R, 780458FZN
DURAGO BR900610, BR900596, BR900750
NAPA 2 PF9290X, PF7743X
AGN PROLOGIX PR53037, PR53043
NAPA 748880458, PF7741X, AD7741, SS9290X, PF7741M, SS7741X, AD7741, SS9290X, AD7741, AD7743, UP7743X, QE7743X, UP7743X, UP7743X, SS7743X, SS7743X, PF7743X, SS7743X, AD7743, PF7743X, QE7743X, PF7743X, AD7743, QE7743X, PF7741M, SS9290X, QE7741X, QE7741X, SS7741X, QE7741X, PF7741M, PF7741X, SS7741X, PF7741X, 748880541
EUROROTOR 53242, 53234
FMSI OTHER 9290, 8402, 8338
WAGNER BD126571, BD126574
CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Mitsubishi Lancer K8C-104837
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Mitsubishi Lancer K8C-104837

Part #: K8C-104837

Position:

What's included

  • 2x Front CMX Disc Brake Rotor (Both Side)
  • 1x Front Ceramic CMX Brake Pad Set (Hardware Included)
  • 2x Rear CMX Disc Brake Rotor (Both Side)
  • 1x Rear Ceramic CMX Brake Pad Set (Hardware Included)

Overview

  • Exclusive CeramiX™ High-Density Ceramic compound provides optimal braking performance (Stable Friction, High Temperature Stability, Extended Lifetime Durability) while maintaining low dust and noise
  • Engineered with carbon-enhanced XCast™ (G3000) iron castings to achieve an optimal wear resistance, tensile strength and steel hardness providing unmatched braking performance
  • Rubberized Multi-Layer Stainless Steel Shim reduces noise, vibration, and harshness for complete quietness
  • Part Reference Numbers : AC53037 AG53037 CR53037 PR53037 53037 YH145705 YH145705C YH145705P 120.63068 BR900596 BR900610 53234 2053037 SEE ONZ0032 248880458 348880458 748880458 900610 Q53037 780458FZN 780458R 780458 A53037 8338 8402 9290 7741 SG7741X PF9290X AD7741 AD9290 PF7741M PF7741X QE7741X SS7741X SS9290X D866 866 AC53043 AG53043 CR53043 PR53043 53043 YH245331 YH245331C YH245331P 120.63069 BR900750 53242 2053043 ONZ0552 248880541 248881849 348880541 348881849 748881849 748880541 900750 Q53043 780541FZN 780541R 780541 A53043 7743 SG7743X PF7743X AD7743 QE7743X SS7743X UP7743X D868 868
  • 100% Precision Spin and Mill-Balanced for smoother stopping and zero vibration at any speed
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to increase durability
  • Cross-Hatched smooth surface to improve the pad's ability to grip the rotor surface, especially during initial brake applications or in wet conditions
  • Precise laser-cut channel cut provides superior thermal stability and prevent overheating
  • Double disc ground finish eliminates lateral run-out and DTV (disk thickness variation) issues on the rotor and improves pad-rotor bed-in
  • Kit Includes: 2x Front Disc Brake Rotor (Both Side) + 1x Front Ceramic Brake Pad Set (Hardware Included) + 2x Rear Disc Brake Rotor (Both Side) + 1x Rear Ceramic Brake Pad Set (Hardware Included)
$235.99

Fastest Delivery

Temporarily Out of Stock

No replenishment date available

Shipping, Returns and Warranty Policies

Free Shipping

Transit Auto offer free shipping on most orders, no minimum amount is required. At checkout, you’ll be able to see the estimated delivery date of your chosen shipping method. For more info, please visit our Shipping and Deliveries page.

Free Returns

Transit Auto offer free return on all orders. To learn more or open a return request, head over to our Returns page.

100% Fitment Guarantee

Transit Auto guarantees the fitment information provided on every vehicle replacement part sold on its website. Learn more on our Fitment Guarantee page.

Warranty

Transit Auto offer a free 1 Year warranty on Transit Inc. products. All other products are covered by the original manufacturer warranty. To learn more, please visit our Warranty page.

Available in Store

Enter your postal code to see nearby stores.

Shop from this location

Select Store

Kit specifications, dimensions, and included hardware details for K8C-104837.

Specification Value
Bolt Hole Quantity 5 (Front) & 5 (Rear)
Outside Diameter (in mm) 276 (Front) & 302 (Rear)
Height (in mm) 45.5 (Front) & 60.1 (Rear)
Discard Thickness (in mm) 24.4 (Front) & 8.4 (Rear)
Nominal Thickness (in mm) 26 (Front) & 10 (Rear)
Bolt Circle Diameter 114.3 (Front) & 114.3 (Rear)
Hat Finished Regular (Front) & Regular (Rear)
Construction Full Cast (Front) & Full Cast (Rear)
Rust Resistant Coating No (Front) & No (Rear)
Slotted (Rotors) No (Front) & No (Rear)
Center Hole Diameter (in mm) 69.00 (Front) & 80.00 (Rear)
Grade Type Regular (Front) & Regular (Rear)
ABS Sensor Ring Included No (Front) & No (Rear)
Surface Type Smooth (Front) & Smooth (Rear)
Solid or Vented Type Rotor Vented (Front) & Solid (Rear)
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 7741 (Front) & 7743 (Rear)
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104837).

Brand Part Number
TRANSBEC A53037, A53043
GEOTECH 2053037, 2053043
FMSI 7741, 7741, 7741, 8338, 9290, 8338, 7743, 7743, 7743, 8402, 9290, 8402
BENDIX PRT5705, PRT5896
Transit Part D866, D866, D868, D868
AGN PERFORMANCE+ CR53037, CR53043
RAYBESTOS 780541, 780458
PAD D# D866, D868
CENTRIC 120.63068, 120.63069
B2B Lookups 866, 866, 868, 868
MAX ADVANCED SEE ONZ0032, SEE ONZ0032, ONZ0552
PAD PLATE# 866, 868
PMR UAP 900610, 900750
CARQUEST YH245331P, YH245331, YH145705P, YH145705
AIMCO 53037, 53043
AGN AUTOLOGIX COATED AC53037, AC53043
NAPA OTHER PF7741X, PF7741X, PF7741X, 348880458, 248880458, PF7741M, PF7741M, SS9290X, PF7741M, SS9290X, QE7741X, AD7741, SS9290X, PF7743X, SS7743X, UP7743X, PF7743X, SG7743X, PF7743X, AD7743, SS7741X, SG7741X, PF7741M, QE7743X, PF7741X, SS9290X, AD9290, 348880541, 248880541, 348881849, 248881849, 748881849
CARQUEST OTHER YH245331C, YH145705C, YH145705, YH245331
AP EXHAUST ASR-53234, xCMX-D866, xCMX-D868, ASR-53242
PARTS MASTER ROTOR 900750, 900610
NAPA 1 SG7743X, SG7741X
QBP Q53037, Q53043
AGN AUTOLOGIX AG53043, AG53037, AG53037, AG53043
C-TEK BY CENTRIC 121.63068, 121.63069
RAYBESTOS OTHER 780541FZN, 780541R, 780458R, 780458FZN
DURAGO BR900610, BR900596, BR900750
NAPA 2 PF9290X, PF7743X
AGN PROLOGIX PR53037, PR53043
NAPA 748880458, PF7741X, AD7741, SS9290X, PF7741M, SS7741X, AD7741, SS9290X, AD7741, AD7743, UP7743X, QE7743X, UP7743X, UP7743X, SS7743X, SS7743X, PF7743X, SS7743X, AD7743, PF7743X, QE7743X, PF7743X, AD7743, QE7743X, PF7741M, SS9290X, QE7741X, QE7741X, SS7741X, QE7741X, PF7741M, PF7741X, SS7741X, PF7741X, 748880541
EUROROTOR 53242, 53234
FMSI OTHER 9290, 8402, 8338
WAGNER BD126571, BD126574

About CMX

As a leader in the Automotive Braking industry, CMX delivers unrivaled braking solutions that redefine performance, reliability, and safety for your vehicle. CMX offers a comprehensive range of cutting-edge brake components meticulously engineered to meet the demands of do-it-yourself customers, garages and large fleet operators.From high-performance brake pads and rotors, to durable brake drums, reliable brake wheel cylinders, state-of-the-art brake shoes and convenient brake kits, CMX has everything you need to elevate your vehicle's braking system. We delivers the highest standards of quality and reliability for your braking needs, enabling you to drive with confidence, precision, and peace of mind.

Explore all CMX products →

Compatibility

2015 Mitsubishi Lancer ES/SE Sportback/DE Front and Rear
2015 Mitsubishi Lancer SE Limited Edition/SE and with FWD Front and Rear
2014 Mitsubishi Lancer ES/ES Sportback Front and Rear
2013-2014 Mitsubishi Lancer SE and with FWD Front and Rear
2013 Mitsubishi Lancer ES/SE Sportback/ES Sportback/DE Front and Rear
