CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Ford Transit-250 Transit-350 Transit-150 With 5 Lug Wheels 115mm Bolt Circle RWD K8C-104846
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Ford Transit-250 Transit-350 Transit-150 With 5 Lug Wheels 115mm Bolt Circle RWD K8C-104846

Part #: K8C-104846

Position:

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Ford Transit-250 Transit-350 Transit-150 With 5 Lug Wheels 115mm

Kit specifications, dimensions, and included hardware details for K8C-104846.

Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 308
Height (in mm) 25.6
Discard Thickness (in mm) 15
Nominal Thickness (in mm) 18
Bolt Circle Diameter 150
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No (Front) & No (Rear)
Center Hole Diameter (in mm) 122.5
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth (Front) & Smooth (Rear)
Solid or Vented Type Rotor Vented (Front) & Solid (Rear)
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 9648 (Front) & 9518 (Rear)
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104846).

Brand Part Number
TRANSBEC AFO1076, AFO1032
GEOTECH 2950153, 2941026
FMSI 9648, 9518
BENDIX PRT6280
AGN PERFORMANCE+ CR85325, CR85735
RAYBESTOS 682343, 681939
PAD D# D2423, D2280
CENTRIC 120.65145, 120.65156
MAX ADVANCED ONZ1358, ONZ0840
PAD PLATE# 2423, 2280
TRANSBEC OTHER FO1032, AFO1045, FO1045, FO1076
PMR UAP 941026, 941026, 950153, 950153, 941026
CARQUEST YH653380P, YH653380, YH527279P, YH527279
AIMCO RAY 681939, RAY 682343
AGN AUTOLOGIX COATED AC85325
NAPA OTHER 3488872462, 2488872462, 2488870126, 3488870126
CARQUEST OTHER YH527279, YH653380HC, YH653380, YH653380C, YH527279HC, YH527279C
AP EXHAUST ASR-54311
PARTS MASTER ROTOR 901670, 901368
NAPA 1 SEE D1774, SEE D1774, FT9518
QBP Q1681939, Q1682343
AGN AUTOLOGIX AR85325, AR85325, AR85735, AR85735
C-TEK BY CENTRIC 121.65145, 121.65156
RAYBESTOS OTHER 682343FZN, 682343R, 681939FZN, 681939R
DURAGO BR901368, BR901670
PROMAX 640032, 640003
AGN PROLOGIX PR85325, PR85325, PR85735
NAPA 7488870126, 7488872462
EUROROTOR 54314, 54311
WAGNER BD180665
CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Ford Transit-250 Transit-350 Transit-150 With 5 Lug Wheels 115mm Bolt Circle RWD K8C-104846
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For Ford Transit-250 Transit-350 Transit-150 With 5 Lug Wheels 115mm Bolt Circle RWD K8C-104846

Part #: K8C-104846

Position:

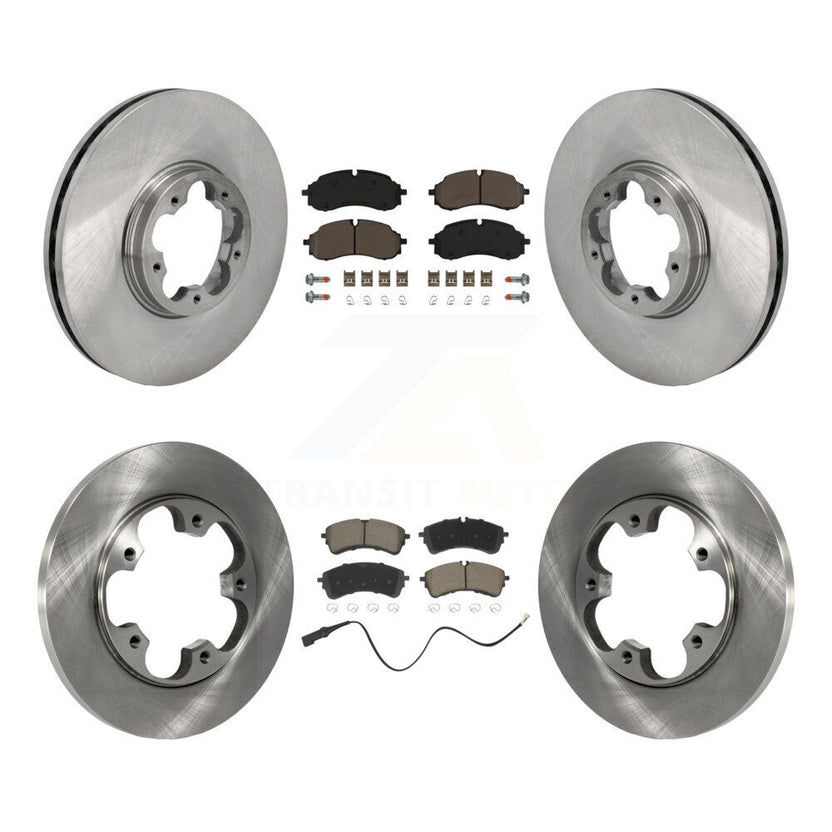

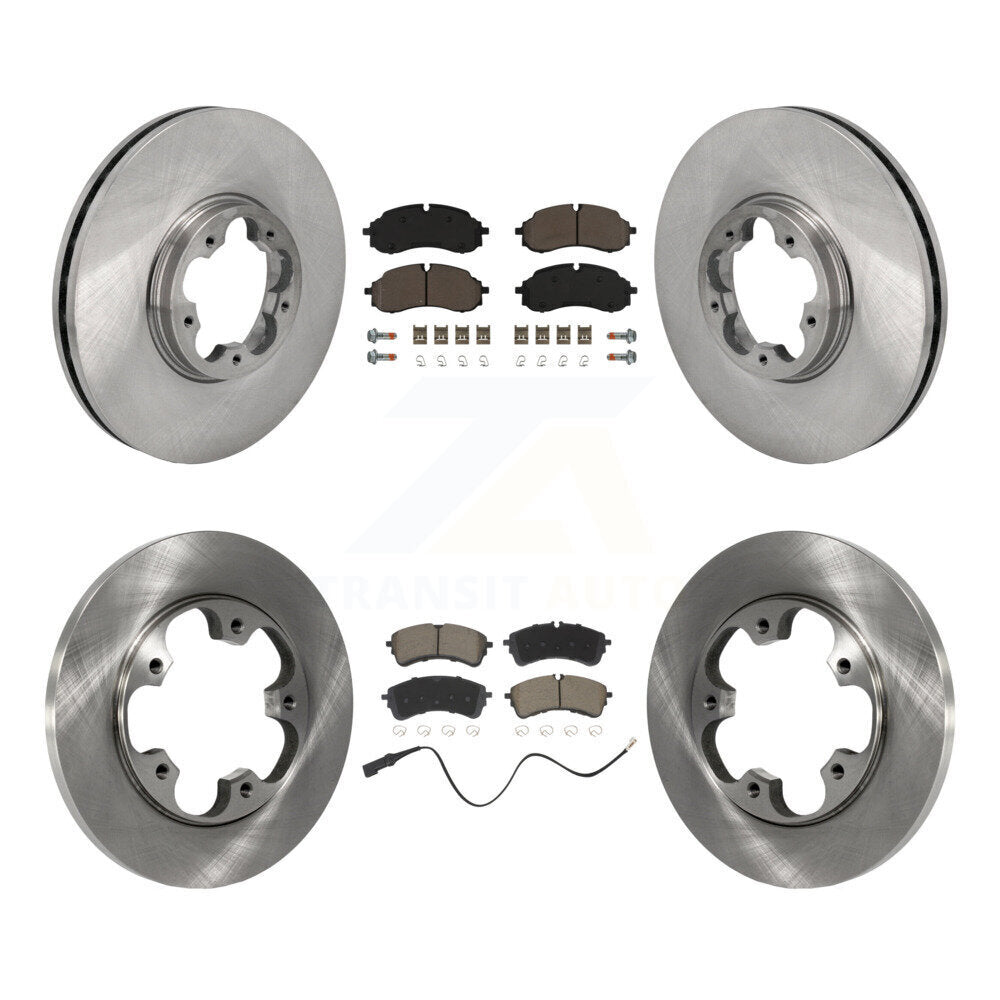

What's included

  • 2x Front CMX Disc Brake Rotor (Both Side)
  • 1x Front Ceramic CMX Brake Pad Set (Hardware Included)
  • 2x Rear CMX Disc Brake Rotor (Both Side)
  • 1x Rear Ceramic CMX Brake Pad Set

Overview

  • Exclusive CeramiX™ High-Density Ceramic compound provides optimal braking performance (Stable Friction, High Temperature Stability, Extended Lifetime Durability) while maintaining low dust and noise
  • Engineered with carbon-enhanced XCast™ (G3000) iron castings to achieve an optimal wear resistance, tensile strength and steel hardness providing unmatched braking performance
  • Rubberized Multi-Layer Stainless Steel Shim reduces noise, vibration, and harshness for complete quietness
  • Part Reference Numbers : AC85325 AR85325 CR85325 PR85325 YH653380 YH653380C YH653380HC YH653380P 120.65156 BR901670 54314 2950153 ONZ1358 2488872462 3488872462 7488872462 901670 950153 640032 Q1682343 682343FZN 682343R 682343 AFO1045 FO1045 FO1076 AFO1076 9648 SEE D1774 D2423 2423 AR85735 CR85735 PR85735 YH527279 YH527279C YH527279HC YH527279P 120.65145 BR901368 54311 2941026 ONZ0840 2488870126 3488870126 7488870126 901368 941026 640003 Q1681939 681939FZN 681939R 681939 FO1032 AFO1032 9518 FT9518 D2280 2280
  • 100% Precision Spin and Mill-Balanced for smoother stopping and zero vibration at any speed
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to increase durability
  • Cross-Hatched smooth surface to improve the pad's ability to grip the rotor surface, especially during initial brake applications or in wet conditions
  • Precise laser-cut channel cut provides superior thermal stability and prevent overheating
  • Double disc ground finish eliminates lateral run-out and DTV (disk thickness variation) issues on the rotor and improves pad-rotor bed-in
  • Kit Includes: 2x Front Disc Brake Rotor (Both Side) + 1x Front Ceramic Brake Pad Set (Hardware Included) + 2x Rear Disc Brake Rotor (Both Side) + 1x Rear Ceramic Brake Pad Set
$377.99

Fastest Delivery

Temporarily Out of Stock

No replenishment date available

Shipping, Returns and Warranty Policies

Free Shipping

Transit Auto offer free shipping on most orders, no minimum amount is required. At checkout, you’ll be able to see the estimated delivery date of your chosen shipping method. For more info, please visit our Shipping and Deliveries page.

Free Returns

Transit Auto offer free return on all orders. To learn more or open a return request, head over to our Returns page.

100% Fitment Guarantee

Transit Auto guarantees the fitment information provided on every vehicle replacement part sold on its website. Learn more on our Fitment Guarantee page.

Warranty

Transit Auto offer a free 1 Year warranty on Transit Inc. products. All other products are covered by the original manufacturer warranty. To learn more, please visit our Warranty page.

Available in Store

Enter your postal code to see nearby stores.

Shop from this location

Select Store

Kit specifications, dimensions, and included hardware details for K8C-104846.

Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 308
Height (in mm) 25.6
Discard Thickness (in mm) 15
Nominal Thickness (in mm) 18
Bolt Circle Diameter 150
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No (Front) & No (Rear)
Center Hole Diameter (in mm) 122.5
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth (Front) & Smooth (Rear)
Solid or Vented Type Rotor Vented (Front) & Solid (Rear)
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 9648 (Front) & 9518 (Rear)
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104846).

Brand Part Number
TRANSBEC AFO1076, AFO1032
GEOTECH 2950153, 2941026
FMSI 9648, 9518
BENDIX PRT6280
AGN PERFORMANCE+ CR85325, CR85735
RAYBESTOS 682343, 681939
PAD D# D2423, D2280
CENTRIC 120.65145, 120.65156
MAX ADVANCED ONZ1358, ONZ0840
PAD PLATE# 2423, 2280
TRANSBEC OTHER FO1032, AFO1045, FO1045, FO1076
PMR UAP 941026, 941026, 950153, 950153, 941026
CARQUEST YH653380P, YH653380, YH527279P, YH527279
AIMCO RAY 681939, RAY 682343
AGN AUTOLOGIX COATED AC85325
NAPA OTHER 3488872462, 2488872462, 2488870126, 3488870126
CARQUEST OTHER YH527279, YH653380HC, YH653380, YH653380C, YH527279HC, YH527279C
AP EXHAUST ASR-54311
PARTS MASTER ROTOR 901670, 901368
NAPA 1 SEE D1774, SEE D1774, FT9518
QBP Q1681939, Q1682343
AGN AUTOLOGIX AR85325, AR85325, AR85735, AR85735
C-TEK BY CENTRIC 121.65145, 121.65156
RAYBESTOS OTHER 682343FZN, 682343R, 681939FZN, 681939R
DURAGO BR901368, BR901670
PROMAX 640032, 640003
AGN PROLOGIX PR85325, PR85325, PR85735
NAPA 7488870126, 7488872462
EUROROTOR 54314, 54311
WAGNER BD180665

About CMX

As a leader in the Automotive Braking industry, CMX delivers unrivaled braking solutions that redefine performance, reliability, and safety for your vehicle. CMX offers a comprehensive range of cutting-edge brake components meticulously engineered to meet the demands of do-it-yourself customers, garages and large fleet operators.From high-performance brake pads and rotors, to durable brake drums, reliable brake wheel cylinders, state-of-the-art brake shoes and convenient brake kits, CMX has everything you need to elevate your vehicle's braking system. We delivers the highest standards of quality and reliability for your braking needs, enabling you to drive with confidence, precision, and peace of mind.

Explore all CMX products →

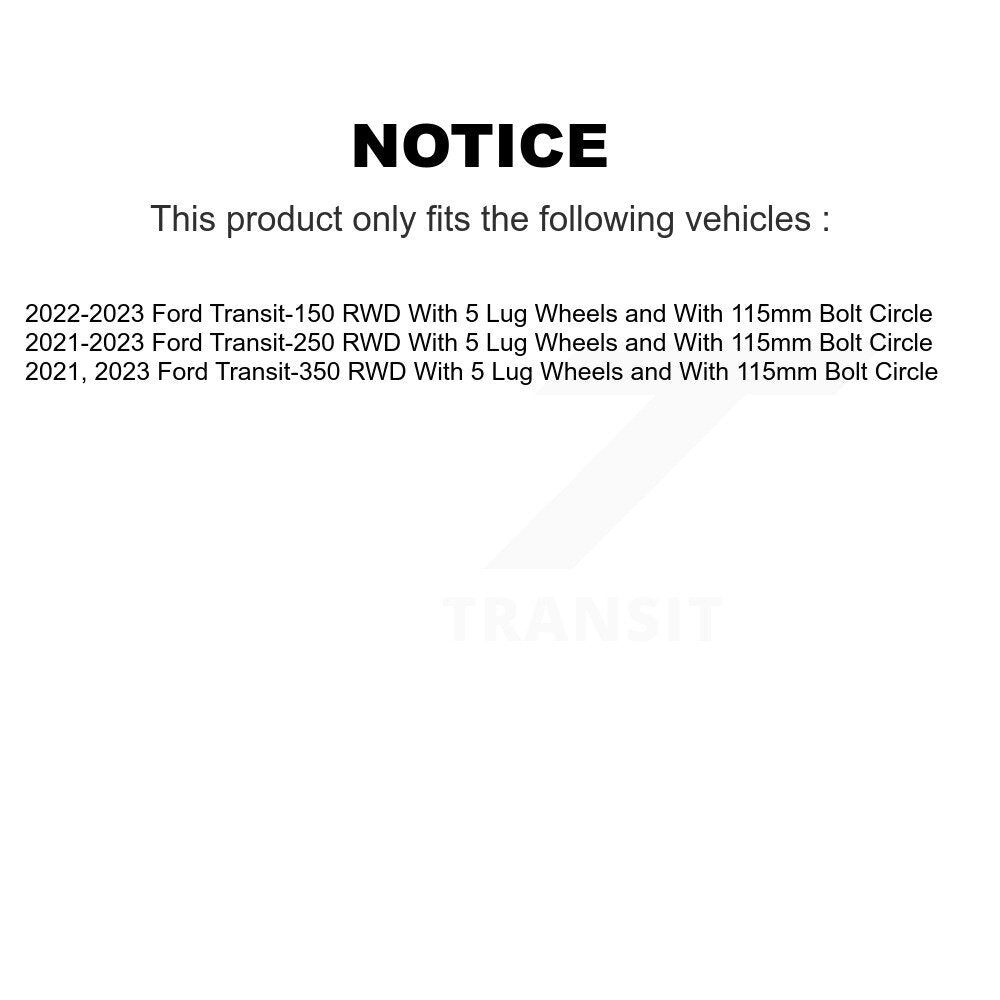

Compatibility

2022-2023 Ford Transit-150 RWD With 5 Lug Wheels and With 115mm Bolt Circle Front and Rear
2021-2023 Ford Transit-250 RWD With 5 Lug Wheels and With 115mm Bolt Circle Front and Rear
2021, 2023 Ford Transit-350 RWD With 5 Lug Wheels and With 115mm Bolt Circle Front and Rear

Frequently Asked Questions

Will this Brake Kit fit my Ford Transit-150? +

Yes. K8C-104846 Brake Kit guarantees OEM fitment for Ford Transit-150 models matching: 2022-2023 Ford Transit-150 (Front and Rear, RWD, With 5 Lug Wheels and With 115mm Bolt Circle). Refer to the compatibility chart above for complete details.

Will this Brake Kit fit my Ford Transit-250? +

Yes. K8C-104846 Brake Kit guarantees OEM fitment for Ford Transit-250 models matching: 2021-2023 Ford Transit-250 (Front and Rear, RWD, With 5 Lug Wheels and With 115mm Bolt Circle). Refer to the compatibility chart above for complete details.

Will this Brake Kit fit my Ford Transit-350? +

Yes. K8C-104846 Brake Kit guarantees OEM fitment for Ford Transit-350 models matching: 2021, 2023 Ford Transit-350 (Front and Rear, RWD, With 5 Lug Wheels and With 115mm Bolt Circle). Refer to the compatibility chart above for complete details.
