CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2022 Ram ProMaster 3500 2500 1500 K8C-104871
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2022 Ram ProMaster 3500 2500 1500 K8C-104871

Part #: K8C-104871

Position:

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2022 Ram ProMaster 3500 2500 1500 K8C-104871

Kit specifications, dimensions, and included hardware details for K8C-104871.

Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 300
Height (in mm) 73.5
Discard Thickness (in mm) 30
Nominal Thickness (in mm) 32
Bolt Circle Diameter 130
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No
Center Hole Diameter (in mm) 80
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth
Solid or Vented Type Rotor Vented
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes (Front) & TBD (Rear)
FMSI Number 8748 (Front) & 9693 (Rear)
Slotted (Pads) Yes (Front) & TBD (Rear)
Rubberized Hardware Included No
Pad Wear Sensor Included True
Grade Type Regular
Abutment Clips Included True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104871).

Brand Part Number
TRANSBEC BRM ONLY, ACH5001, BRM ONLY
GEOTECH 2901276, U449109
FMSI 8973, 8973, 8748, 8748, 8748, 9071, 9070, 8972, 9693, 9071, 8972, 9070
BENDIX PRT6276
Transit Part TQ8471, D1540, TQ8471, D1540
AGN PERFORMANCE+ CR81065, CR81635
RAYBESTOS 782903, 781766
PAD D# D1540, D2467
CENTRIC 120.67091, 120.67091, 120.67076
B2B Lookups 1540, 1540
MAX ADVANCED ONZ0846
PAD PLATE# 1540, 2467
TRANSBEC OTHER CH5001, ACH5024, CH5024
PMR UAP 901276, 950942, 950942, 950942
OEM 68603420AA, 68603420AA
CARQUEST YH737213P, YH737213, YH516900P, YH516900
AIMCO RAY 781766
AGN AUTOLOGIX COATED AC81635
NAPA OTHER SS8973M, SS8973M, SS8973M, FT8973, FT8972, 2488822946, FT8972, 3488822946, FT8972, 2488821693, SG8973M, 3488821693, FT8972
CARQUEST OTHER YH516900HC, YH737213HC, YH516900C, YH516900, YH737213
AP EXHAUST ASR-53167, xCMX-D1540
PARTS MASTER ROTOR 901276, 901944, 901944
NAPA 1 SG8973M, SG9693X
QBP Q1781766, Q1782903
AGN AUTOLOGIX AR81635, AR81065, AR81065
C-TEK BY CENTRIC 121.67076
RAYBESTOS OTHER 781766FZN, 782903R, 781766R, 782903FZN
DURAGO BR901944, BR901944, BR901276
BRAKE PADS OTHER 1540B, D1540B
PROMAX 630031, 630031, 630000
NAPA 2 SS8973M
AGN PROLOGIX PR81065, PR81635
NAPA FT8973, FT8972, FT8973, SS8973M, FT8973, 7488822946, FT8972, FT8972, SS8973M, SS8973M, 7488821693
EUROROTOR SEE 53170, 53167, 53172
FMSI OTHER 8973, 9070, 9071, 8972
WAGNER BD180702
CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2022 Ram ProMaster 3500 2500 1500 K8C-104871
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2022 Ram ProMaster 3500 2500 1500 K8C-104871

Part #: K8C-104871

Position:

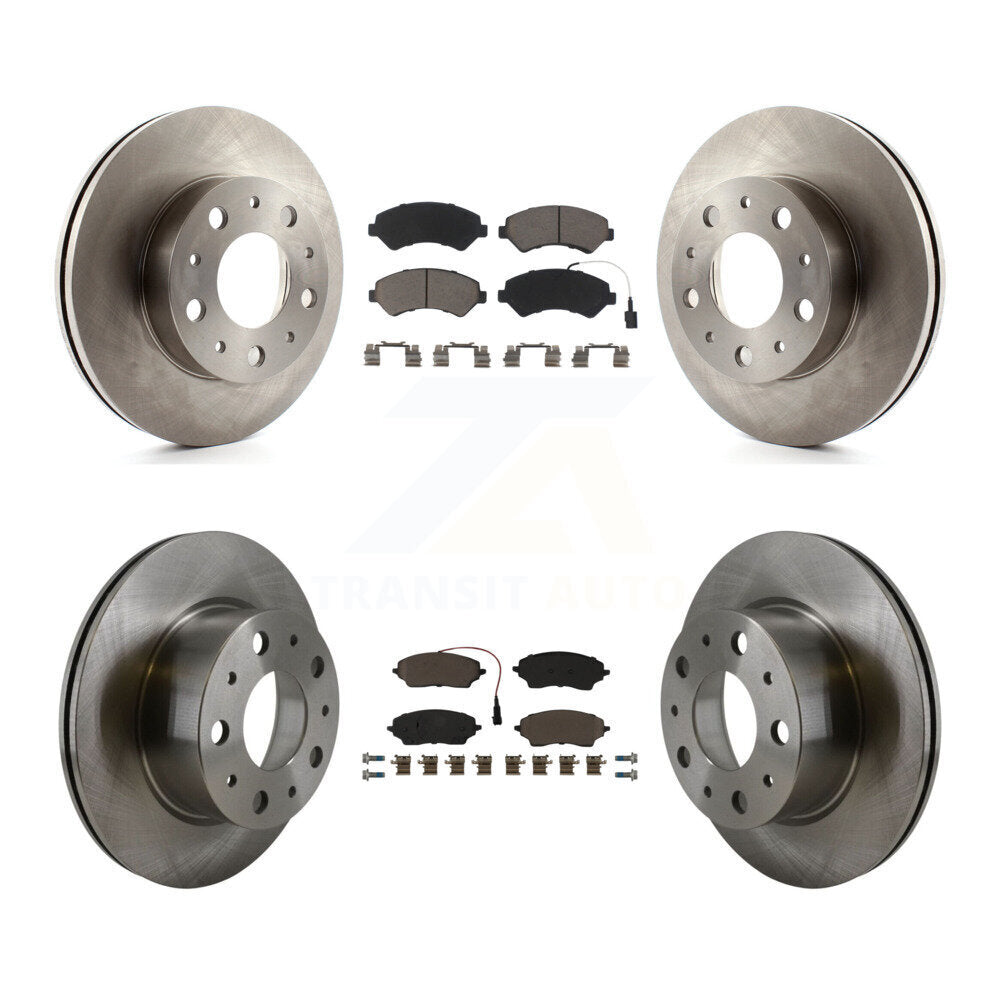

What's included

  • 2x Front CMX Disc Brake Rotor (Both Side)
  • 1x Front Ceramic CMX Brake Pad Set (With Sensor) (Hardware Included)
  • 2x Rear CMX Disc Brake Rotor (Both Side)
  • 1x Rear Ceramic CMX Brake Pad Set (With Sensor) (Hardware Included)

Overview

  • Exclusive CeramiX™ High-Density Ceramic compound provides optimal braking performance (Stable Friction, High Temperature Stability, Extended Lifetime Durability) while maintaining low dust and noise
  • Engineered with carbon-enhanced XCast™ (G3000) iron castings to achieve an optimal wear resistance, tensile strength and steel hardness providing unmatched braking performance
  • Rubberized Multi-Layer Stainless Steel Shim reduces noise, vibration, and harshness for complete quietness
  • Part Reference Numbers : AR81065 CR81065 PR81065 YH516900 YH516900C YH516900HC YH516900P 120.67076 BR901276 53167 2901276 ONZ0846 2488821693 3488821693 7488821693 901276 630000 Q1781766 781766FZN 781766R 781766 CH5001 ACH5001 1540B D1540B 8972 8973 9070 9071 8748 SG8973M SS8973M FT8972 FT8973 D1540 1540 AC81635 AR81635 CR81635 PR81635 YH737213 YH737213HC YH737213P 120.67091 BR901944 53172 U449109 2488822946 3488822946 7488822946 68603420AA 901944 950942 630031 Q1782903 782903FZN 782903R 782903 ACH5024 CH5024 BRM ONLY TQ8471 9693 SG9693X D2467 2467
  • 100% Precision Spin and Mill-Balanced for smoother stopping and zero vibration at any speed
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to increase durability
  • Cross-Hatched smooth surface to improve the pad's ability to grip the rotor surface, especially during initial brake applications or in wet conditions
  • Precise laser-cut channel cut provides superior thermal stability and prevent overheating
  • Scorched for almost no break-in process required, raised initial cold effectiveness, and enhanced Pad-to-Rotor contact
  • Kit Includes: 2x Front Disc Brake Rotor (Both Side) + 1x Front Ceramic Brake Pad Set (With Sensor) (Hardware Included) + 2x Rear Disc Brake Rotor (Both Side) + 1x Rear Ceramic Brake Pad Set (With Sensor) (Hardware Included)
$375.99

Fastest Delivery

Temporarily Out of Stock

No replenishment date available

Shipping, Returns and Warranty Policies

Free Shipping

Transit Auto offer free shipping on most orders, no minimum amount is required. At checkout, you’ll be able to see the estimated delivery date of your chosen shipping method. For more info, please visit our Shipping and Deliveries page.

Free Returns

Transit Auto offer free return on all orders. To learn more or open a return request, head over to our Returns page.

100% Fitment Guarantee

Transit Auto guarantees the fitment information provided on every vehicle replacement part sold on its website. Learn more on our Fitment Guarantee page.

Warranty

Transit Auto offer a free 1 Year warranty on Transit Inc. products. All other products are covered by the original manufacturer warranty. To learn more, please visit our Warranty page.

Available in Store

Enter your postal code to see nearby stores.

Shop from this location

Select Store

Kit specifications, dimensions, and included hardware details for K8C-104871.

Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 300
Height (in mm) 73.5
Discard Thickness (in mm) 30
Nominal Thickness (in mm) 32
Bolt Circle Diameter 130
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No
Center Hole Diameter (in mm) 80
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth
Solid or Vented Type Rotor Vented
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes (Front) & TBD (Rear)
FMSI Number 8748 (Front) & 9693 (Rear)
Slotted (Pads) Yes (Front) & TBD (Rear)
Rubberized Hardware Included No
Pad Wear Sensor Included True
Grade Type Regular
Abutment Clips Included True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104871).

Brand Part Number
TRANSBEC BRM ONLY, ACH5001, BRM ONLY
GEOTECH 2901276, U449109
FMSI 8973, 8973, 8748, 8748, 8748, 9071, 9070, 8972, 9693, 9071, 8972, 9070
BENDIX PRT6276
Transit Part TQ8471, D1540, TQ8471, D1540
AGN PERFORMANCE+ CR81065, CR81635
RAYBESTOS 782903, 781766
PAD D# D1540, D2467
CENTRIC 120.67091, 120.67091, 120.67076
B2B Lookups 1540, 1540
MAX ADVANCED ONZ0846
PAD PLATE# 1540, 2467
TRANSBEC OTHER CH5001, ACH5024, CH5024
PMR UAP 901276, 950942, 950942, 950942
OEM 68603420AA, 68603420AA
CARQUEST YH737213P, YH737213, YH516900P, YH516900
AIMCO RAY 781766
AGN AUTOLOGIX COATED AC81635
NAPA OTHER SS8973M, SS8973M, SS8973M, FT8973, FT8972, 2488822946, FT8972, 3488822946, FT8972, 2488821693, SG8973M, 3488821693, FT8972
CARQUEST OTHER YH516900HC, YH737213HC, YH516900C, YH516900, YH737213
AP EXHAUST ASR-53167, xCMX-D1540
PARTS MASTER ROTOR 901276, 901944, 901944
NAPA 1 SG8973M, SG9693X
QBP Q1781766, Q1782903
AGN AUTOLOGIX AR81635, AR81065, AR81065
C-TEK BY CENTRIC 121.67076
RAYBESTOS OTHER 781766FZN, 782903R, 781766R, 782903FZN
DURAGO BR901944, BR901944, BR901276
BRAKE PADS OTHER 1540B, D1540B
PROMAX 630031, 630031, 630000
NAPA 2 SS8973M
AGN PROLOGIX PR81065, PR81635
NAPA FT8973, FT8972, FT8973, SS8973M, FT8973, 7488822946, FT8972, FT8972, SS8973M, SS8973M, 7488821693
EUROROTOR SEE 53170, 53167, 53172
FMSI OTHER 8973, 9070, 9071, 8972
WAGNER BD180702

About CMX

As a leader in the Automotive Braking industry, CMX delivers unrivaled braking solutions that redefine performance, reliability, and safety for your vehicle. CMX offers a comprehensive range of cutting-edge brake components meticulously engineered to meet the demands of do-it-yourself customers, garages and large fleet operators.From high-performance brake pads and rotors, to durable brake drums, reliable brake wheel cylinders, state-of-the-art brake shoes and convenient brake kits, CMX has everything you need to elevate your vehicle's braking system. We delivers the highest standards of quality and reliability for your braking needs, enabling you to drive with confidence, precision, and peace of mind.

Explore all CMX products →

Compatibility

2022 Ram ProMaster 1500 Front and Rear
2022 Ram ProMaster 2500 Front and Rear
2022 Ram ProMaster 3500 Front and Rear
