CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2018 Land Rover Range 3.0L with DIESEL engine With 380mm Diameter Rotor K8C-104842
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2018 Land Rover Range 3.0L with DIESEL engine With 380mm Diameter Rotor K8C-104842

Part #: K8C-104842

Position:

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2018 Land Rover Range 3.0L with DIESEL engine With 380mm Diameter

Kit specifications, dimensions, and included hardware details for K8C-104842.

Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 379.98
Height (in mm) 61.98
Discard Thickness (in mm) 30.99
Nominal Thickness (in mm) 34.01
Bolt Circle Diameter 119.89
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No (Front) & No (Rear)
Center Hole Diameter (in mm) 79.25
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth (Front) & Smooth (Rear)
Solid or Vented Type Rotor Vented (Front) & Vented (Rear)
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 8543 (Front) & 8919 (Rear)
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104842).

Brand Part Number
TRANSBEC ALA1020, BRM ONLY, BRM ONLY, BRM ONLY, BRM ONLY
GEOTECH 2940048, 2950207, 2950204
FMSI 8543, 8543, 8543, 8919, 8919, 8919
BENDIX PRT6064
Transit Part D1692, D1692, D1426, D1426
AGN PERFORMANCE+ CR40035, CR40575, CR40575
RAYBESTOS 982437, 982437, 980926
PAD D# D1692, D1426
CENTRIC 120.22033, 120.22033, 125.22022, 125.22032
B2B Lookups 1692, 1692, 1426, 1426
PAD PLATE# 1692, 1426
TRANSBEC OTHER LA1020, ALA1020, A34489
PMR UAP 940048, 940048, 940048, 950207, 950207, 950204, 950204, 950204
OEM LR084067, LR084067
CARQUEST YH655649P, YH655652, YH655652P, YH291554, YH291554P
AIMCO 34489
AGN AUTOLOGIX COATED AC40575, AC40575
NAPA OTHER 2488822323, 488822323, 2488822323, 3488822323, UP8543M, UP8543M, UP8543M, 348880926, 2488822320, 248880926, UP8919M, UP8919M, UP8919M, UP8919M, UP8543M
CARQUEST OTHER YH655649C, YH291554, YH655649, YH655652C, YH655652HC, YH655652
AP EXHAUST xCMX-D1426, xCMX-D1692, ASR-LR-167
PARTS MASTER ROTOR 34489
NAPA 1 UP8919M, UP8543M
QBP Q1980926, Q1982437, Q1982437
AGN AUTOLOGIX AR40575, AR40575, AR40035, AR40035
C-TEK BY CENTRIC 121.22021
RAYBESTOS OTHER 980926R, 980926FZN, 982437FZN, 982437R
DURAGO BR34489, BR34489
PROMAX 620095, 620095
AGN PROLOGIX PR40575, PR40575, PR40035
NAPA 748880926, 7488822320, UP8919M, UP8543M, UP8919M, UP8919M, 7488822323, 7488822323, UP8543M, UP8543M
EUROROTOR LR-167, LR-178, LR-178, LR-181
WAGNER BD180394
CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2018 Land Rover Range 3.0L with DIESEL engine With 380mm Diameter Rotor K8C-104842
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2018 Land Rover Range 3.0L with DIESEL engine With 380mm Diameter Rotor K8C-104842

Part #: K8C-104842

Position:

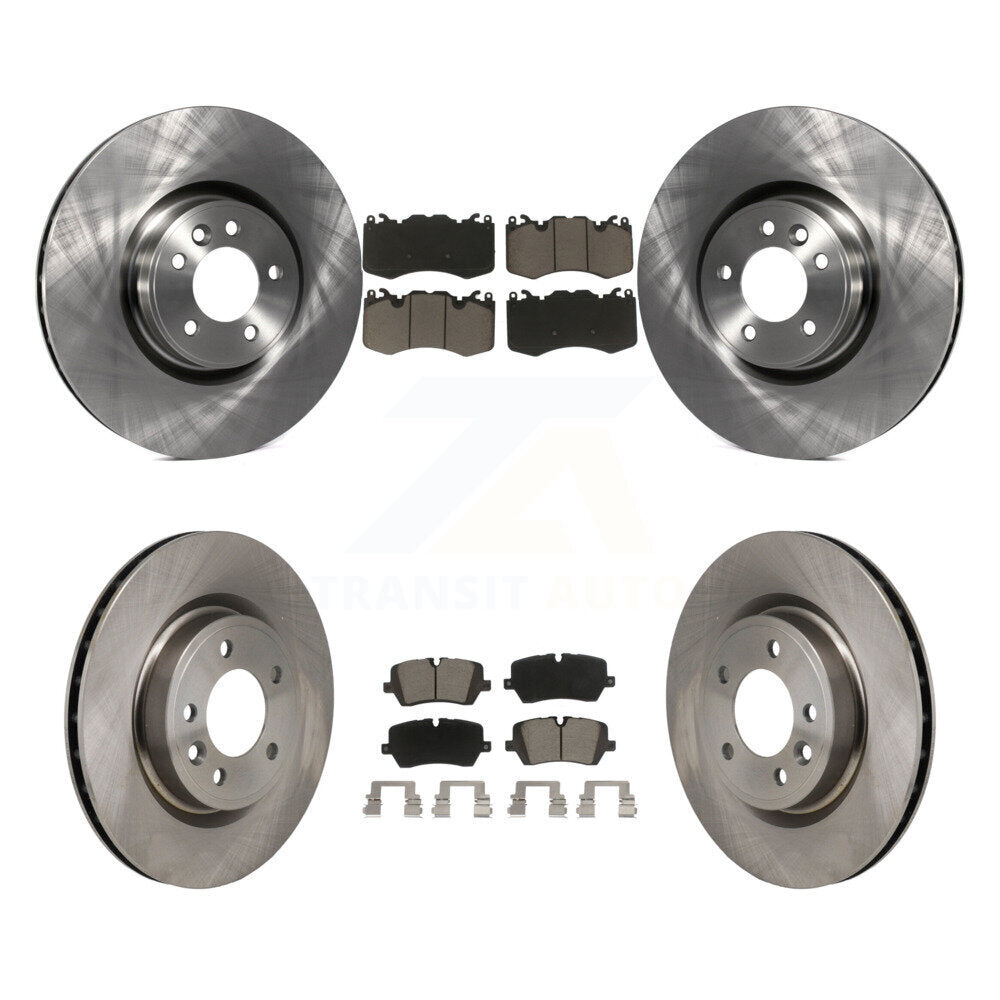

What's included

  • 2x Front CMX Disc Brake Rotor (Both Side)
  • 1x Front Ceramic CMX Brake Pad Set
  • 2x Rear CMX Disc Brake Rotor (Both Side)
  • 1x Rear Ceramic CMX Brake Pad Set (Hardware Included)

Overview

  • Exclusive CeramiX™ High-Density Ceramic compound provides optimal braking performance (Stable Friction, High Temperature Stability, Extended Lifetime Durability) while maintaining low dust and noise
  • Engineered with carbon-enhanced XCast™ (G3000) iron castings to achieve an optimal wear resistance, tensile strength and steel hardness providing unmatched braking performance
  • Rubberized Multi-Layer Stainless Steel Shim reduces noise, vibration, and harshness for complete quietness
  • Part Reference Numbers : AR40035 CR40035 PR40035 34489 YH291554 YH655649 YH655649C YH291554P YH655649P 125.22022 125.22032 BR34489 LR-167 LR-181 2940048 2950207 248880926 2488822320 348880926 748880926 7488822320 940048 950207 Q1980926 980926FZN 980926R 980926 A34489 BRM ONLY 8543 UP8543M D1426 1426 AC40575 AR40575 CR40575 PR40575 YH655652 YH655652C YH655652HC YH655652P 120.22033 LR-178 2950204 2488822323 3488822323 7488822323 LR084067 950204 620095 Q1982437 982437FZN 982437R 982437 ALA1020 LA1020 8919 UP8919M D1692 1692
  • 100% Precision Spin and Mill-Balanced for smoother stopping and zero vibration at any speed
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to increase durability
  • Cross-Hatched smooth surface to improve the pad's ability to grip the rotor surface, especially during initial brake applications or in wet conditions
  • Precise laser-cut channel cut provides superior thermal stability and prevent overheating
  • Double disc ground finish eliminates lateral run-out and DTV (disk thickness variation) issues on the rotor and improves pad-rotor bed-in
  • Kit Includes: 2x Front Disc Brake Rotor (Both Side) + 1x Front Ceramic Brake Pad Set + 2x Rear Disc Brake Rotor (Both Side) + 1x Rear Ceramic Brake Pad Set (Hardware Included)
$431.99

Fastest Delivery

Temporarily Out of Stock

No replenishment date available

Shipping, Returns and Warranty Policies

Free Shipping

Transit Auto offer free shipping on most orders, no minimum amount is required. At checkout, you’ll be able to see the estimated delivery date of your chosen shipping method. For more info, please visit our Shipping and Deliveries page.

Free Returns

Transit Auto offer free return on all orders. To learn more or open a return request, head over to our Returns page.

100% Fitment Guarantee

Transit Auto guarantees the fitment information provided on every vehicle replacement part sold on its website. Learn more on our Fitment Guarantee page.

Warranty

Transit Auto offer a free 1 Year warranty on Transit Inc. products. All other products are covered by the original manufacturer warranty. To learn more, please visit our Warranty page.

Available in Store

Enter your postal code to see nearby stores.

Shop from this location

Select Store

Kit specifications, dimensions, and included hardware details for K8C-104842.

Specification Value
Bolt Hole Quantity 5
Outside Diameter (in mm) 379.98
Height (in mm) 61.98
Discard Thickness (in mm) 30.99
Nominal Thickness (in mm) 34.01
Bolt Circle Diameter 119.89
Hat Finished Regular
Construction Full Cast
Rust Resistant Coating No
Slotted (Rotors) No (Front) & No (Rear)
Center Hole Diameter (in mm) 79.25
Grade Type Regular
ABS Sensor Ring Included No
Surface Type Smooth (Front) & Smooth (Rear)
Solid or Vented Type Rotor Vented (Front) & Vented (Rear)
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 8543 (Front) & 8919 (Rear)
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104842).

Brand Part Number
TRANSBEC ALA1020, BRM ONLY, BRM ONLY, BRM ONLY, BRM ONLY
GEOTECH 2940048, 2950207, 2950204
FMSI 8543, 8543, 8543, 8919, 8919, 8919
BENDIX PRT6064
Transit Part D1692, D1692, D1426, D1426
AGN PERFORMANCE+ CR40035, CR40575, CR40575
RAYBESTOS 982437, 982437, 980926
PAD D# D1692, D1426
CENTRIC 120.22033, 120.22033, 125.22022, 125.22032
B2B Lookups 1692, 1692, 1426, 1426
PAD PLATE# 1692, 1426
TRANSBEC OTHER LA1020, ALA1020, A34489
PMR UAP 940048, 940048, 940048, 950207, 950207, 950204, 950204, 950204
OEM LR084067, LR084067
CARQUEST YH655649P, YH655652, YH655652P, YH291554, YH291554P
AIMCO 34489
AGN AUTOLOGIX COATED AC40575, AC40575
NAPA OTHER 2488822323, 488822323, 2488822323, 3488822323, UP8543M, UP8543M, UP8543M, 348880926, 2488822320, 248880926, UP8919M, UP8919M, UP8919M, UP8919M, UP8543M
CARQUEST OTHER YH655649C, YH291554, YH655649, YH655652C, YH655652HC, YH655652
AP EXHAUST xCMX-D1426, xCMX-D1692, ASR-LR-167
PARTS MASTER ROTOR 34489
NAPA 1 UP8919M, UP8543M
QBP Q1980926, Q1982437, Q1982437
AGN AUTOLOGIX AR40575, AR40575, AR40035, AR40035
C-TEK BY CENTRIC 121.22021
RAYBESTOS OTHER 980926R, 980926FZN, 982437FZN, 982437R
DURAGO BR34489, BR34489
PROMAX 620095, 620095
AGN PROLOGIX PR40575, PR40575, PR40035
NAPA 748880926, 7488822320, UP8919M, UP8543M, UP8919M, UP8919M, 7488822323, 7488822323, UP8543M, UP8543M
EUROROTOR LR-167, LR-178, LR-178, LR-181
WAGNER BD180394

About CMX

As a leader in the Automotive Braking industry, CMX delivers unrivaled braking solutions that redefine performance, reliability, and safety for your vehicle. CMX offers a comprehensive range of cutting-edge brake components meticulously engineered to meet the demands of do-it-yourself customers, garages and large fleet operators.From high-performance brake pads and rotors, to durable brake drums, reliable brake wheel cylinders, state-of-the-art brake shoes and convenient brake kits, CMX has everything you need to elevate your vehicle's braking system. We delivers the highest standards of quality and reliability for your braking needs, enabling you to drive with confidence, precision, and peace of mind.

Explore all CMX products →

Compatibility

2018 Land Rover Range Rover 3.0L and with DIESEL engine With 380mm Diameter Front Rotor Front and Rear
