CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2016 Kia Optima Hybrid EX LX Premium With Electric Parking K8C-104856
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2016 Kia Optima Hybrid EX LX Premium With Electric Parking K8C-104856

Part #: K8C-104856

Position:

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2016 Kia Optima Hybrid EX LX Premium With Electric Parking

Kit specifications, dimensions, and included hardware details for K8C-104856.

Specification Value
Bolt Hole Quantity 5 (Front) & 5 (Rear)
Outside Diameter (in mm) 300 (Front) & 283.97 (Rear)
Height (in mm) 47.3 (Front) & 32.26 (Rear)
Discard Thickness (in mm) 26 (Front) & 8.38 (Rear)
Nominal Thickness (in mm) 28 (Front) & 10.01 (Rear)
Bolt Circle Diameter 114.3 (Front) & 114.3 (Rear)
Hat Finished Regular (Front) & Regular (Rear)
Construction Full Cast (Front) & Full Cast (Rear)
Rust Resistant Coating No (Front) & No (Rear)
Slotted (Rotors) No (Front) & No (Rear)
Center Hole Diameter (in mm) 69.00 (Front) & 75.95 (Rear)
Grade Type Regular (Front) & Regular (Rear)
ABS Sensor Ring Included No (Front) & No (Rear)
Surface Type Smooth (Front) & Smooth (Rear)
Solid or Vented Type Rotor Vented (Front) & Solid (Rear)
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 8595 (Front) & 8428 (Rear)
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104856).

Brand Part Number
NAPA OTHER 2488821308, 248881828, 348881828, 3488821308, PF8595X, AD8595, PF8595X, PF8595X, 248880460, 348880460, 348881009, 248881009, SG8595X, SS8428CX, SS8595X, QE8595X, SG8428CX
QBP Q1981009, Q1981865
AGN AUTOLOGIX AR60615, AG31427, AR60615, AG31427, AR60625, AR63045, AR63045, AR60625
FMSI 8595, 8428, 8428, 8595, 8428, 8595
TRANSBEC OTHER KI1012, AKI1013, KI1013
B2B Lookups 1813, 1444, 1444, 1813
AP EXHAUST ASR-HY-373, ASR-KI-977, xCMX-D1444, xCMX-D1813
NAPA 1 SG8595X, SG8428CX
PAD PLATE# 1444, 1813
CENTRIC 120.51020, 120.50029, 125.50032, 120.51050
GEOTECH 2031427, 2940816
RAYBESTOS OTHER 981009R, 980460FZN, 981772FZN, 980460R, 981009FZN, 981772R, 981865R, 981865FZN
NAPA 748881009, 748880460, AD8595, AD8595, PF8595X, 7488821308, QE8595X, SS8595X, QE8595X, PF8595X, 748881828, SS8595X, QE8595X, AD8595, PF8595X, SS8595X
CARQUEST OTHER YH504544, YH321785, YH200738, YH536731C, YH504544HC, YH536731P, YH200738C, YH536731, YH536731HC
MAX ADVANCED ONZ1007, ONZ0228
Transit Part D1444, D1813, D1444, D1813
NAPA 2 PF8595X, PF8428CX
PROMAX 610102, 610015
AGN AUTOLOGIX COATED AC31427, AC60615, AC63045, AC60625
AGN PERFORMANCE+ CR60615, CR31427, CR63045, CR60625
C-TEK BY CENTRIC 121.51020, 121.50032, 121.51050, 121.50029
AGN PROLOGIX PR60615, PR31427, PR63045, PR60625
RAYBESTOS 981009, 980460, 981865, 981772
TRANSBEC A31427, AKI1012
PMR UAP 900280, 940816, 940816, 940816
AIMCO 31624, 31427
PARTS MASTER ROTOR 900280, 901430
DURAGO BR901430, BR900280
BENDIX PRT6123, PRT6285, PRT5832
CARQUEST YH200738, YH504544, YH321785, YH200738P, YH536731P, YH504544P
WAGNER BD180556, BD126449
EUROROTOR KI-977, HY-373
PAD D# D1444, D1813
CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2016 Kia Optima Hybrid EX LX Premium With Electric Parking K8C-104856
CMX Official Logo

CMX

CMX Front Rear Disc Brake Rotors And Ceramic Pads Kit For 2016 Kia Optima Hybrid EX LX Premium With Electric Parking K8C-104856

Part #: K8C-104856

Position:

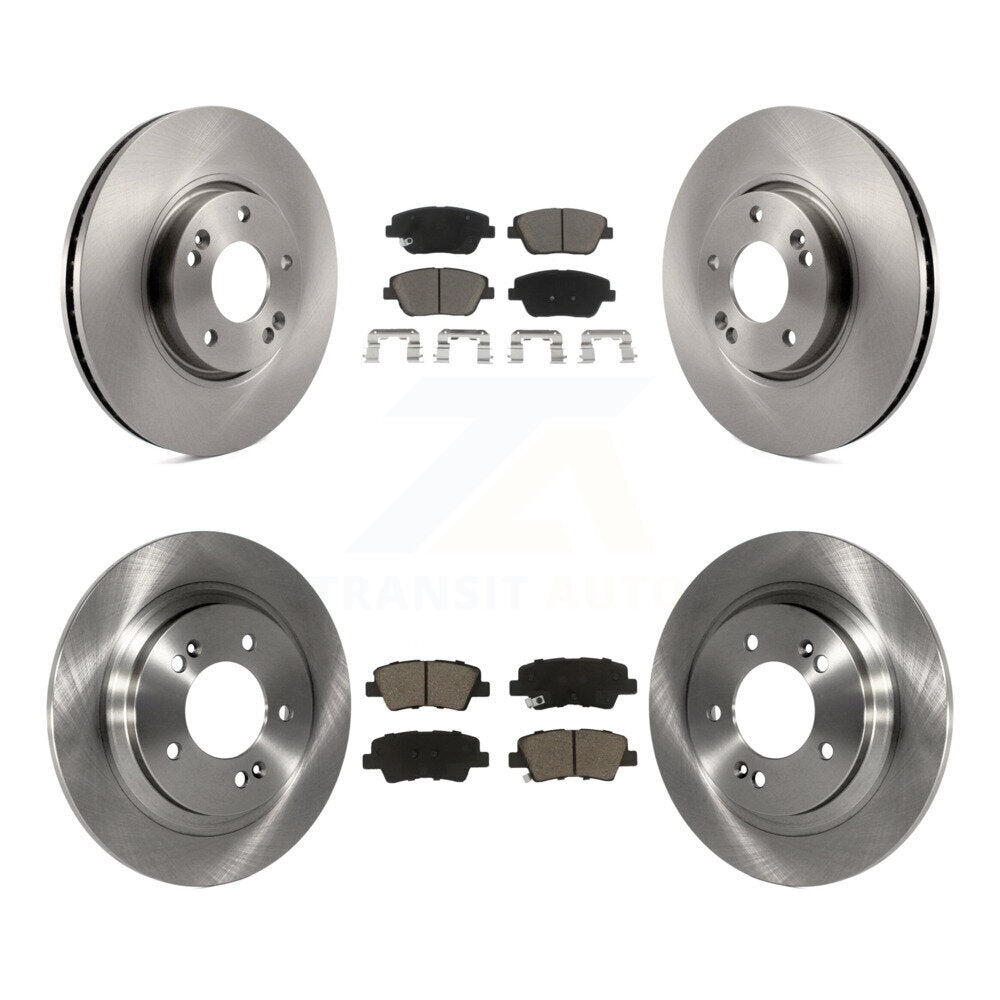

What's included

  • 2x Front CMX Disc Brake Rotor (Both Side)
  • 1x Front Ceramic CMX Brake Pad Set (Hardware Included)
  • 2x Rear CMX Disc Brake Rotor (Both Side)
  • 1x Rear Ceramic CMX Brake Pad Set (Hardware Included)

Overview

  • Exclusive CeramiX™ High-Density Ceramic compound provides optimal braking performance (Stable Friction, High Temperature Stability, Extended Lifetime Durability) while maintaining low dust and noise
  • Engineered with carbon-enhanced XCast™ (G3000) iron castings to achieve an optimal wear resistance, tensile strength and steel hardness providing unmatched braking performance
  • Rubberized Multi-Layer Stainless Steel Shim reduces noise, vibration, and harshness for complete quietness
  • Part Reference Numbers : AC31427 AC63045 AG31427 AR63045 CR31427 CR63045 PR31427 PR63045 31427 YH200738 YH200738C YH321785 YH200738P YH536731P 120.51020 120.51050 125.50032 BR900280 HY-373 2031427 ONZ0228 248880460 2488821308 348880460 3488821308 748880460 7488821308 900280 610102 Q1981865 980460FZN 980460R 981865FZN 981865R 980460 981865 AKI1013 KI1013 A31427 8595 SG8595X PF8595X AD8595 QE8595X SS8595X D1444 1444 AC60615 AC60625 AR60615 AR60625 CR60615 CR60625 PR60615 PR60625 31624 YH504544 YH504544HC YH504544P 120.50029 BR901430 KI-977 2940816 ONZ1007 248881009 248881828 348881009 348881828 748881009 748881828 901430 940816 610015 Q1981009 981009FZN 981009R 981772FZN 981772R 981009 981772 KI1012 AKI1012 8428 SG8428CX PF8428CX SS8428CX D1813 1813
  • 100% Precision Spin and Mill-Balanced for smoother stopping and zero vibration at any speed
  • Engineered with High Carbon SteelRX™ alloy (Pressure Resistant, Thermal Conductive) and dipped in an Anti-Rust Black Paint to increase durability
  • Cross-Hatched smooth surface to improve the pad's ability to grip the rotor surface, especially during initial brake applications or in wet conditions
  • Precise laser-cut channel cut provides superior thermal stability and prevent overheating
  • Double disc ground finish eliminates lateral run-out and DTV (disk thickness variation) issues on the rotor and improves pad-rotor bed-in
  • Kit Includes: 2x Front Disc Brake Rotor (Both Side) + 1x Front Ceramic Brake Pad Set (Hardware Included) + 2x Rear Disc Brake Rotor (Both Side) + 1x Rear Ceramic Brake Pad Set (Hardware Included)
$264.99

Fastest Delivery

Temporarily Out of Stock

No replenishment date available

Shipping, Returns and Warranty Policies

Free Shipping

Transit Auto offer free shipping on most orders, no minimum amount is required. At checkout, you’ll be able to see the estimated delivery date of your chosen shipping method. For more info, please visit our Shipping and Deliveries page.

Free Returns

Transit Auto offer free return on all orders. To learn more or open a return request, head over to our Returns page.

100% Fitment Guarantee

Transit Auto guarantees the fitment information provided on every vehicle replacement part sold on its website. Learn more on our Fitment Guarantee page.

Warranty

Transit Auto offer a free 1 Year warranty on Transit Inc. products. All other products are covered by the original manufacturer warranty. To learn more, please visit our Warranty page.

Available in Store

Enter your postal code to see nearby stores.

Shop from this location

Select Store

Kit specifications, dimensions, and included hardware details for K8C-104856.

Specification Value
Bolt Hole Quantity 5 (Front) & 5 (Rear)
Outside Diameter (in mm) 300 (Front) & 283.97 (Rear)
Height (in mm) 47.3 (Front) & 32.26 (Rear)
Discard Thickness (in mm) 26 (Front) & 8.38 (Rear)
Nominal Thickness (in mm) 28 (Front) & 10.01 (Rear)
Bolt Circle Diameter 114.3 (Front) & 114.3 (Rear)
Hat Finished Regular (Front) & Regular (Rear)
Construction Full Cast (Front) & Full Cast (Rear)
Rust Resistant Coating No (Front) & No (Rear)
Slotted (Rotors) No (Front) & No (Rear)
Center Hole Diameter (in mm) 69.00 (Front) & 75.95 (Rear)
Grade Type Regular (Front) & Regular (Rear)
ABS Sensor Ring Included No (Front) & No (Rear)
Surface Type Smooth (Front) & Smooth (Rear)
Solid or Vented Type Rotor Vented (Front) & Solid (Rear)
Friction Material Composition Ceramic
Friction Material Attachment Integrally Molded
Pad Shims Included Yes
FMSI Number 8595 (Front) & 8428 (Rear)
Slotted (Pads) Yes
Rubberized Hardware Included No
Pad Wear Sensor Included False
Grade Type Regular
Abutment Clips Included True
Chamfered Edges True

Cross-reference part numbers and OEM equivalents for the components included in this kit (K8C-104856).

Brand Part Number
NAPA OTHER 2488821308, 248881828, 348881828, 3488821308, PF8595X, AD8595, PF8595X, PF8595X, 248880460, 348880460, 348881009, 248881009, SG8595X, SS8428CX, SS8595X, QE8595X, SG8428CX
QBP Q1981009, Q1981865
AGN AUTOLOGIX AR60615, AG31427, AR60615, AG31427, AR60625, AR63045, AR63045, AR60625
FMSI 8595, 8428, 8428, 8595, 8428, 8595
TRANSBEC OTHER KI1012, AKI1013, KI1013
B2B Lookups 1813, 1444, 1444, 1813
AP EXHAUST ASR-HY-373, ASR-KI-977, xCMX-D1444, xCMX-D1813
NAPA 1 SG8595X, SG8428CX
PAD PLATE# 1444, 1813
CENTRIC 120.51020, 120.50029, 125.50032, 120.51050
GEOTECH 2031427, 2940816
RAYBESTOS OTHER 981009R, 980460FZN, 981772FZN, 980460R, 981009FZN, 981772R, 981865R, 981865FZN
NAPA 748881009, 748880460, AD8595, AD8595, PF8595X, 7488821308, QE8595X, SS8595X, QE8595X, PF8595X, 748881828, SS8595X, QE8595X, AD8595, PF8595X, SS8595X
CARQUEST OTHER YH504544, YH321785, YH200738, YH536731C, YH504544HC, YH536731P, YH200738C, YH536731, YH536731HC
MAX ADVANCED ONZ1007, ONZ0228
Transit Part D1444, D1813, D1444, D1813
NAPA 2 PF8595X, PF8428CX
PROMAX 610102, 610015
AGN AUTOLOGIX COATED AC31427, AC60615, AC63045, AC60625
AGN PERFORMANCE+ CR60615, CR31427, CR63045, CR60625
C-TEK BY CENTRIC 121.51020, 121.50032, 121.51050, 121.50029
AGN PROLOGIX PR60615, PR31427, PR63045, PR60625
RAYBESTOS 981009, 980460, 981865, 981772
TRANSBEC A31427, AKI1012
PMR UAP 900280, 940816, 940816, 940816
AIMCO 31624, 31427
PARTS MASTER ROTOR 900280, 901430
DURAGO BR901430, BR900280
BENDIX PRT6123, PRT6285, PRT5832
CARQUEST YH200738, YH504544, YH321785, YH200738P, YH536731P, YH504544P
WAGNER BD180556, BD126449
EUROROTOR KI-977, HY-373
PAD D# D1444, D1813

About CMX

As a leader in the Automotive Braking industry, CMX delivers unrivaled braking solutions that redefine performance, reliability, and safety for your vehicle. CMX offers a comprehensive range of cutting-edge brake components meticulously engineered to meet the demands of do-it-yourself customers, garages and large fleet operators.From high-performance brake pads and rotors, to durable brake drums, reliable brake wheel cylinders, state-of-the-art brake shoes and convenient brake kits, CMX has everything you need to elevate your vehicle's braking system. We delivers the highest standards of quality and reliability for your braking needs, enabling you to drive with confidence, precision, and peace of mind.

Explore all CMX products →

Compatibility

2016 Kia Optima Hybrid EX/Hybrid LX/Hybrid EX Premium/Hybrid With Electric Parking Brake Front and Rear
